Voyager Star / VOYAGER STAR MRCR ANT E3 WH

96548988

Data Sheet

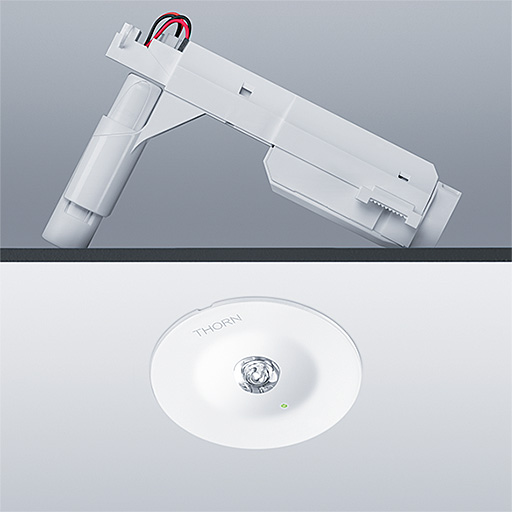

High performance, ceiling recessed LED emergency lighting luminaire, Self contained luminaire, manual test (3 hours) with open area optic. Non-maintained and maintained mode settable via jumper and NFC interface. Housing: die-cast aluminium, powder coated white (close to RAL9016). Gear box for mounting in ceiling recess:. IP40, Ceiling recessed luminaire for 68 mm ceiling cut-out and ceiling thickness from 1 - 25 mm. Lens: polycarbonate. Luminaire can be installed quickly and maintained without tools. Electrical connection (230VAC) via maximum 2.5mm² cable, loop in - loop out possible. Optimum thermal management via heat sink. Voltage supply: 220 - 240 V AC 50/60 Hz Suitable for recessed installation in concrete casting surround (please order separately).. Ceiling cutout Ø68mm in ceiling thicknesses 1-25mm.

Total power: 4 W
Dimensions: Ø85 x 2 mm
Weight: 1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:130 lm
  • Total emergency luminous flux:130 lm
  • Luminaire efficacy*:33 lm/W
  • Lamp efficacy:32 lm/W
  • Rated median useful life*:50000h at 25°C
  • Ballast:1x LED_Con Tridonic
  • Luminaire input power*:4 W Power factor = 0.51
  • Standby Power*:0.9 W
  • Charging power:0.7 W
  • LED
  • CE
  • Hfree
  • IP20_IP40
  • SC2 - Protection Class 2
