Beta 2 / BETA 2 LED3800-830 HFIX OP IP65 Q600

96633220

Data Sheet

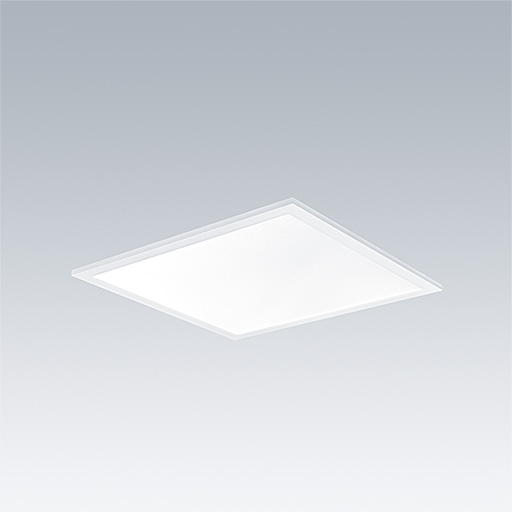

A square Recessed LED luminaire with a 14mm profile. DALI dimmable LED driver. Class II electrical, IP20_IP65, IK06. Body: sheet steel, white (close to RAL9016). Diffuser: opal. Complete with 3000K LED.



Dimensions: 596 x 596 x 14 mm
Luminaire input power: 33 W
Luminaire luminous flux: 3600 lm
Luminaire efficacy: 109 lm/W
Weight: 4.2 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3600 lm
  • Luminaire efficacy*:109 lm/W
  • Lamp efficacy:109 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000h at 25°C
  • Ballast:1x LED_DRV
  • Luminaire input power*:33 W Power factor = 0.98
  • Standby Power*:0.15 W
  • Dimming:HFIX dimmable to 1%
  • LED
  • CE
  • EAC
  • NoIsol
  • 750°
  • IK06
  • IP20_IP65
  • SC2 - Protection Class 2
  • Ta=+10°C_to_+40°C
