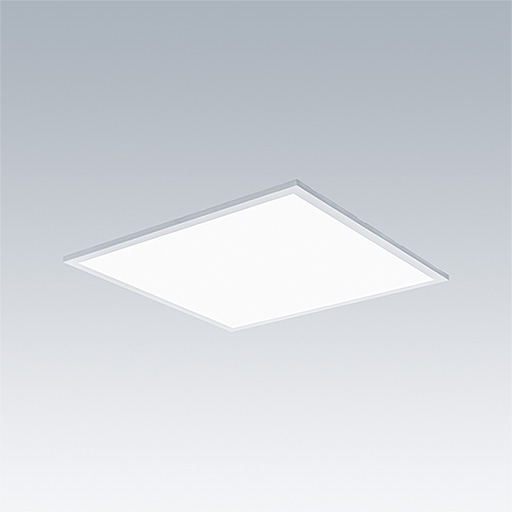

Omega Pro 2 / OP2 3800-840 MPT HFIX Q600 MRG

92915035

Data Sheet

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3800 lm
  • Luminaire efficacy*:131 lm/W
  • Lamp efficacy:130 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000672 DRV TR LCA 45W 1.4A 50V D #O4A SR PRE
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000h at 25°C
  • Luminaire input power*:29.1 W Power factor = 0.98
  • Standby Power*:0.15 W
  • Dimming:Dali2Dim dimmable to 1%

Photometry

Photometric configuration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
