Diffusalux

  • Diffusalux
  • Diffusalux

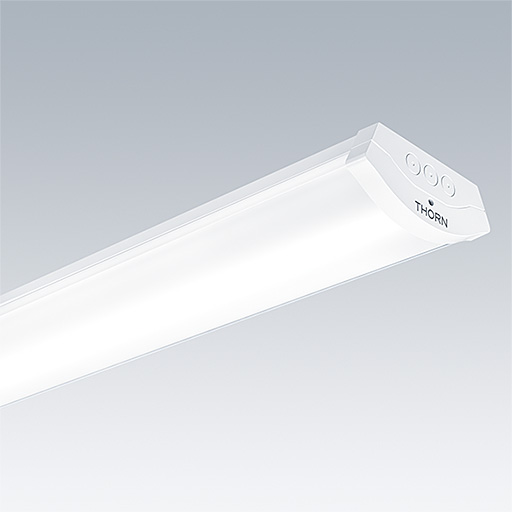

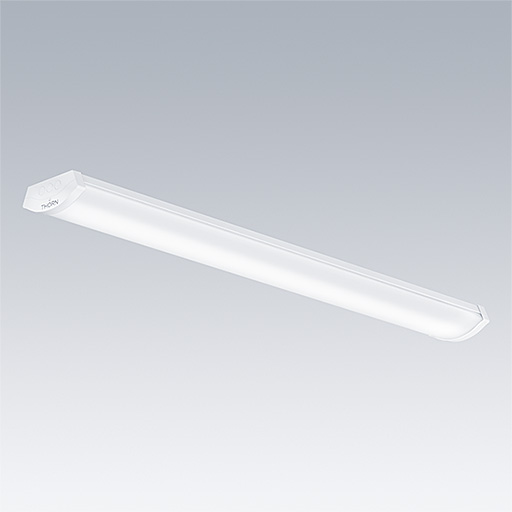

Curved profile linear luminaire with opal diffuser for surface mounting

  • Curved opal diffuser in tough polycarbonate for specific light control
  • Lumen output switch (LOS) for individual control of wattage/lumen output
  • Lockable polycarbonate end caps
  • Sealed up to IP40

Materials and Finish

Body: white painted steeel
End caps: polycarbonate
Diffuser: opal polycarbonate extrusion

Installation and Mounting

Cable entry in the centre of the back spine (Ø21,5mm).
Standard BESA fixings
Piano key terminal block for easy installation.

Specification

To specify state:
Surface mounted, IP40 LED luminaire with curved polycarbonate diffuser retained along its length by screwed on end caps, dimmable.
As Thorn Diffusalux
