IQ Wave SP / IQ SURF L LED4250-840 HF WH

96629271

Data Sheet

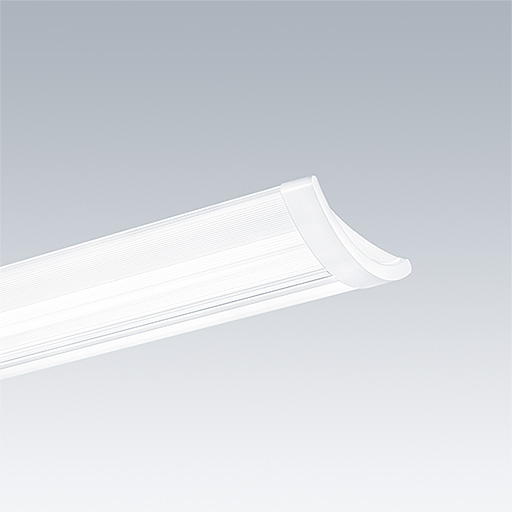

A lightweight, Surface mounted or suspended, LED luminaire with MV Tech optic. Electronic, fixed output control gear. Class I electrical, IP40, IK05. Body, diffuser, frame and endcaps: polycarbonate (Tpa) finished in white (close to RAL9016). Gear tray: pre-coated white steel. Complete with 4000K LED

Dimensions: 1440 x 210 x 70 mm
Luminaire input power: 35 W
Luminaire luminous flux: 4250 lm
Luminaire efficacy: 121 lm/W
weight: 4.9 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4250 lm
  • Luminaire efficacy*:121 lm/W
  • Lamp efficacy:121 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000713 DRV TR LC 75W 400mA 220V F #flexC lp EXC
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000h at 25°C
  • Luminaire input power*:35 W Power factor = 0.92
  • Dimming:FO
  • LED
  • CE
  • 650°
  • IK05
  • IP40
  • RCM
  • Electrical class I
  • Ta= -20 to +25
  • Tpa
