Katona / KAT RD SE 2200-840 HFI

96634053

Data Sheet

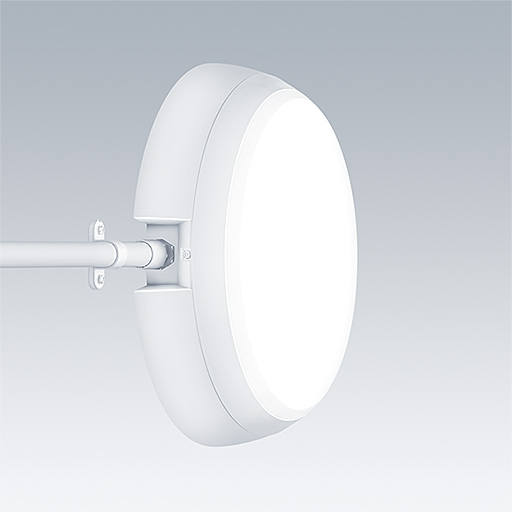

A round functional LED luminaire with deep body for side entry wiring capability, can be used with up to Ø20mm surface mounted conduit. DALI dimmable LED driver. Body: polycarbonate. Diffuser: opal polycarbonate. Class II electrical, IP65, IK10. Complete with 4000K LED. Suitable for direct mounting to wall or ceiling. Loop-in, loop-out is possible for cables up to 2.5mm². BESA compatible.

Dimensions: Ø328 x 84 mm
Luminaire input power: 22.1 W
Luminaire luminous flux: 2150 lm
Luminaire efficacy: 97 lm/W
Weight: 1.3 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2150 lm
  • Luminaire efficacy*:97 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000665 LCA 25W 350-1050mA one4all C PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 35 °C
  • Luminaire input power*:22.1 W Power factor = 0.96
  • Standby Power*:0.2 W
  • Dimming:DaliDim
  • LED
  • CE
  • D
  • Food
  • GLedReP
  • 850°
  • IK10
  • IP65
  • LLedNr
  • RCM
  • SC2 - Protection Class 2
  • Pic_Ta-15_35
