LED Fit

  • LED Fit
  • LED Fit

An ultra lightweight, reliable and efficient alternative to general purpose HID floodlights with best in class optic

  • Ultra lightweight, compact design for ease of installation and minimal aesthetic impact
  • True asymmetric optic provides light distribution and excellent light control (0cd at 90°) with no need to tilt
  • Maintenance free for 50 000 hours lifetime
  • Reduce energy consumption by approximately 80% compared to similar HIT solutions

Materials and Finish

Body : die-cast aluminium light grey 150 sanded textured (close to RAL9006)
Stirrup : aluminium
(EN AC-46000)
Visor : polycarbonate with external surface powder coated RAL 9006 (light grey)
Standard corrosion class: C3

Installation and Mounting

Pre-wired with 60cm cable.
Stirrup can be fixed via three fixation points - one M10 and two M8 - and is reversible allowing different mounting positions.

Specification

To specify state:

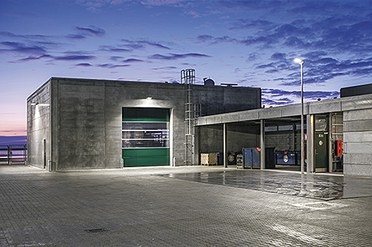

A simple, reliable and efficient alternative to general purpose HID floodlights with true asymmetric optic to cover the requirements of low area lighting, building surroundings and facade lighting. Ultra lightweight, compact design for ease of installation and minimal aesthetic impact available in 2 sizes - Small and Medium - with lumen packages of 4.500lm and 9.000lm and high mechanical resistance (IP66, IK07). The reversible mounting stirrup allows different mounting positions to cover all the applications needs.
As Thorn LED Fit

New Product
LumExpress Product
eControl Product

LED Fit

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LEDFIT M 90W A/S CL1 L830908600LED3.0096633104
LEDFIT M 90W A/S CL1 L840909000LED3.0096628333
LEDFIT S 45W A/S CL1 L830454300LED1.7096633103
LEDFIT S 45W A/S CL1 L840454500LED1.7096628332
