Linn

  • Linn
  • Linn

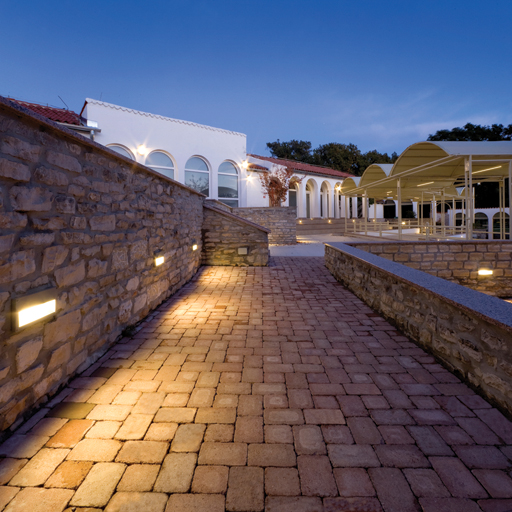

A complete modular wall recessed range offering extensive choice for all types of pathway lighting applications

  • Modular design offers a wide range of lighting possibilities
  • All integral in a compact body for easy integration with pre-ordered recessed housing

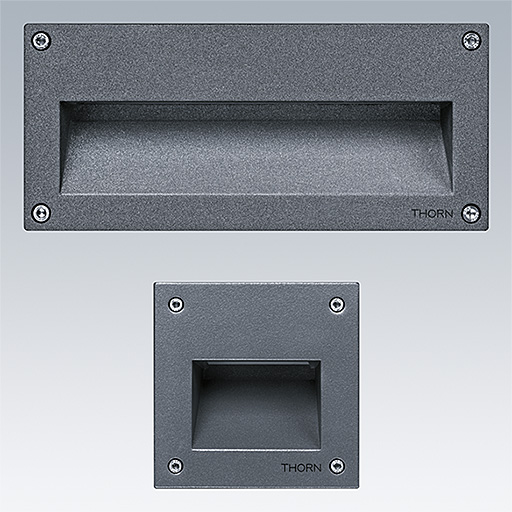

  • Square or rectangular shape with a choice of four frame designs to complement all environments

Materials and Finish

Body: die-cast painted aluminium EN AB 47100 sanded grey Akzo Nobel 900
Glass: tempered glass, 6mm for square versions and 8mm for rectangular versions
Recessed housing: polypropylene 40% Talc added and polystyrene cores
Gasket: Dutral
Fits thread: EPDM
Screws: stainless steel

Installation and Mounting

Install the recessed housing inside the wall. Connect the light source to the mains supply. Fix the body to the recessed housing. Attach the Linn luminaire to the chosen frame with four Torx screws with central pin. Through wiring is possible for the rectangular versions.

Specification

To specify state:
Modular wall recessed range for pathway lighting offering extensive choice including five light distributions, two light sources (LED and CFL), two white LED colour temperatures (3200K and 4200K) and four frame designs (frosted glass, visor, baffle, grid and clear glass) in a square or rectangular shape.
As Thorn Linn.

New Product
LumExpress Product
eControl Product

Linn Square body

Description   Wt (kg)SAP Code
LINN SQ LED 2L35 8320.3096262124
LINN SQ LED 2L35 8420.3096262125

Linn Rectangular body

Description   TypeSocketWt (kg)SAP Code
LINN RCT 18W TC-D G24d-2FSQG24d-20.9696262128
LINN RCT LED 6L50 8320.6796262126
LINN RCT LED 6L50 8420.6796262127

Linn Performance versions

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
LINN RCT LED 6L50 732 CL GL11436LED1.0596262137
LINN RCT LED 6L50 742 CL GL11436LED1.0596262138

Linn Square frames

Description   Wt (kg)SAP Code
LINN SQ BAF FRAME0.2196262131
LINN SQ FR GL FRAME0.1696262129
LINN SQ GRID FRAME0.2096262132
LINN SQ VISOR FRAME0.2096262130

Linn Rectangular frames

Description   Wt (kg)SAP Code
LINN RCT BAF FRAME0.4496262135
LINN RCT FR GL FRAME0.3696262133
LINN RCT GRID FRAME0.4796262136
LINN RCT VISOR FRAME0.4496262134

Linn Recessing boxes

Description   Wt (kg)SAP Code
LINN ALLEN SCREWS X 40.2096262922
LINN RCT ALLEN SCREWS X 40.2096262927
LINN RCT RBOX0.2596262140
LINN SQ RBOX0.1196262139

Linn Bollard

Description   Wt (kg)SAP Code
LINN RCT BOLLARD EXTENSION4.3596264336
LINN RCT BOLLARD GROUND BASE2.5096264339
