Linn / LINN RCT LED 6L50 742 CL GL

96262138

Data Sheet

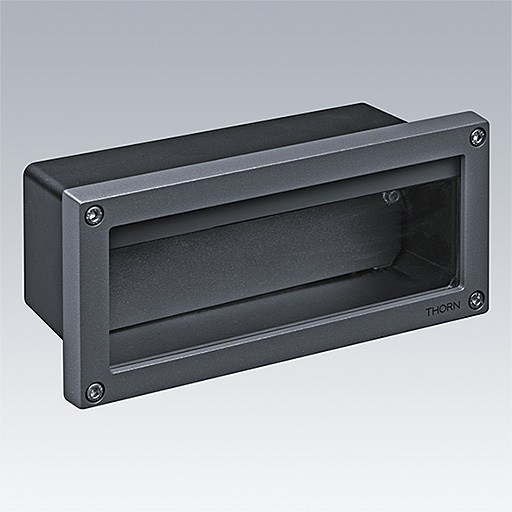

A rectangular, Recessed LED luminaire for pathway lighting applications. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body: die-cast aluminium, painted dark grey (Akzo Nobel 900). Glass: tempered glass, 8mm thick. Recessed housing (required, to be ordered separately): polypropylene. Complete with 4200K LED

Supplied complete with clear glass frame.

Dimensions: 102 x 229 x 91 mm
Luminaire input power: 11.3 W
Weight: 1.05 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:436 lm
  • Luminaire efficacy*:39 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:4200 Kelvin
  • Ballast:1x EL2
  • Luminaire input power*:11.3 W Power factor = 0.54
  • Dimming:FO
  • LED
  • CE
  • EAC
  • 850°
  • IK10
  • IP65
  • RCM
  • Electrical class I
  • Ta=35°C
