Urba / URBA L 48L50 NR ANT BP CL2 MLE L740

96269859

Data Sheet

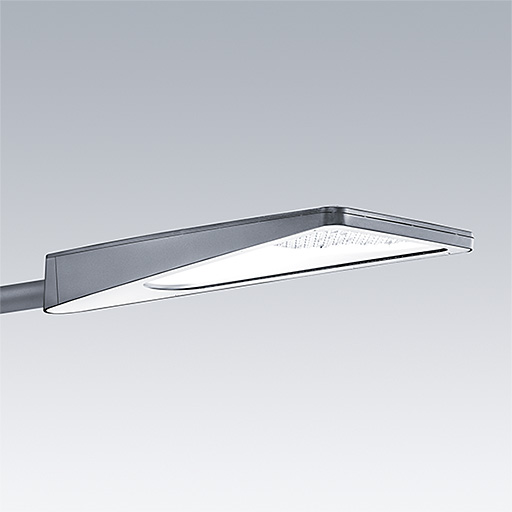

A large size LED urban street lighting lantern with 48 LEDs driven at 500mA with Narrow Road optic. Electronic, fixed output control gear. Class II electrical, IP66, IK09. Body: die-cast aluminium, textured dark grey. Cover: tempered flat clear glass. Side entry mounting to Ø60mm spigot with adjustable tilt angles of 0°, -5°, -10°. Integral power reduction function which dims down to 50% power, effective 3 hours before and 5 hours after a calculated midnight. Complete with 4000K LED.

Dimensions: 1065 x 400 x 176 mm
Luminaire input power: 72 W
Weight: 16 kg
Scx: 0.11 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:9972 lm
  • Luminaire efficacy*:139 lm/W
  • Lamp efficacy:138 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96271331 DRV OS OT 90W 1.05A 186V D #1A0 4DIMLT2
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L85 100000h at 25°C
  • Luminaire input power*:72 W
  • Dimming:FO
  • LED
  • CE
  • EAC
  • ENEC
  • IK09
  • IP66
  • RCM
  • SC2 - Protection Class 2
