Aerie

  • Aerie

A discreet urban element that puts light where and when people need it

  • With its soft glow, Aerie provides the best visual comfort during the night life through the urban environment
  • Most advanced retrofit and sustainable solution to adapt to any urban project with regards to day and night aesthetic, photometrical needs and controls requirements
  • Delivers light only when people need it, with its high-quality integrated motion sensor, enabling energy savings while ensuring safety
  • Can be installated close to residences thanks to its unobtrusive external louvre that can easily be added on-site
  • Offers a great flexibility of mast configurations, styles, mountings and heights
  • Can be installed in the most demanding areas such as sea sides and high temperature environments

Materials and Finish

Base and canopy: corrosion resistant die cast aluminium for C5 environments, powder coated texturized anthracite (close to RAL7043)
Additional colours available via myProduct
Bowl : UV stabilised polycarbonate - clear (IK10) and opal finishes
Internal highly reflective white reflector

Installation and Mounting

Post top mounting : Ø60mm and Ø76mm, pre-wired for ease of installation, with one tool. 120° fixing screws for a perfect adjustment on the pole, toolless opening with quick access from above, toolless maintenance of the gear tray, maintenance of bowl possible on site.

Specification

To specify state:
Post top LED lantern with a timeless design with a variety of optical cover shapes and finishes to adapt to different environments and needs. Efficient (Up to 146 lm/W (3000 K) - up to 160 lm/W (4000 K) R-PEC or A-PEC optic with a choice of light distributions for precise light placement with minimum waste of light. Comfortable for citizens thanks to an optimized diffuser. Wide range of intelligent lighting control solutions from stand-alone dimming to full remote control via central monitoring system. Incorporates up to two Zhaga connectors located on and/or underneath the canopy for a completely flexible and futureproof solution.
As Thorn Aerie

New Product
LumExpress Product
eControl Product

Aerie Wide, Rotationally symmetric optic

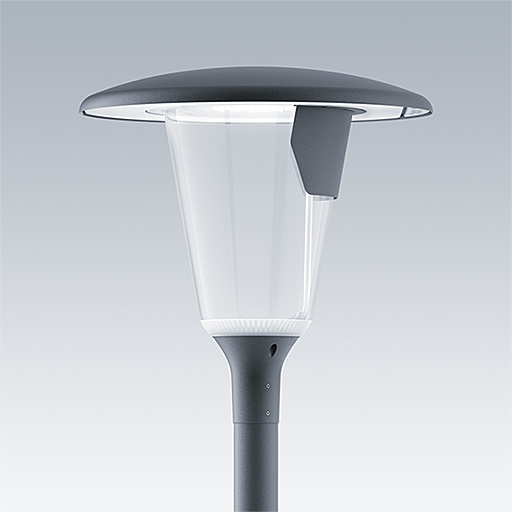

Aerie Wide, Wide street comfort optic

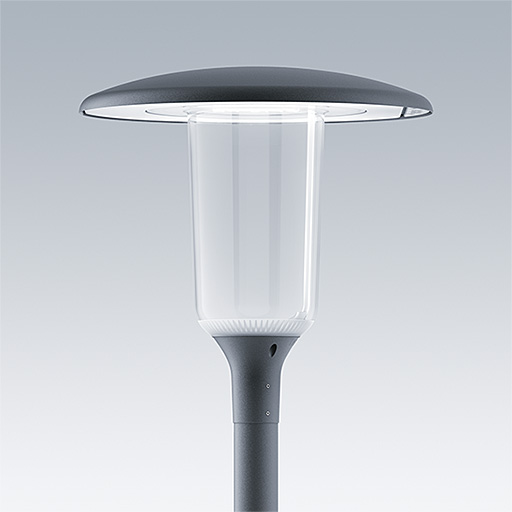

Aerie Slim, Rotationally symmetric optic

Aerie Slim, Wide street comfort optic

Aerie accessories

Description   Wt (kg)SAP Code
ARS LV0.8096632481
ARW LV0.8096632480
