EP 145

  • EP 145
  • EP 145

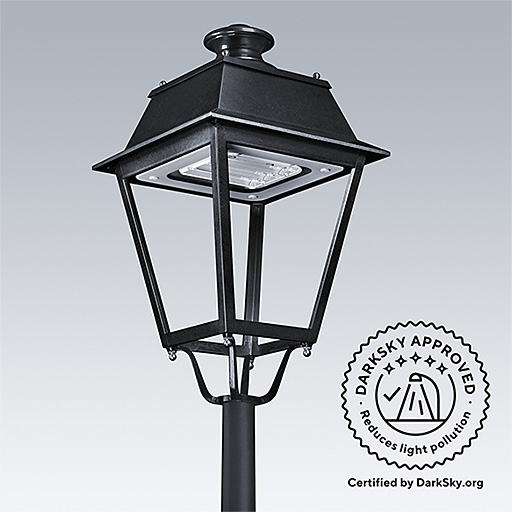

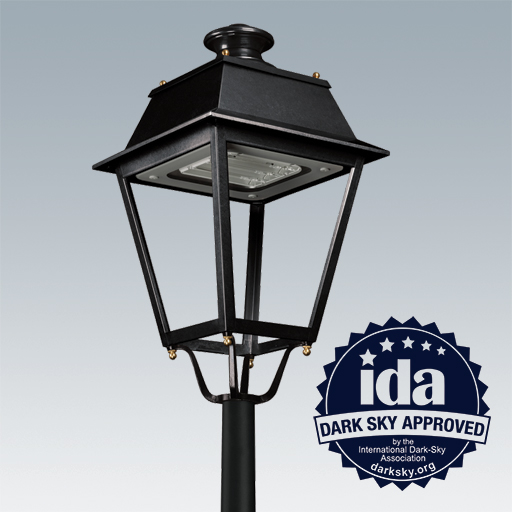

A range of sealed Victorian styled lanterns in antique copper or black finish

  • Choice of post top or suspended mounting.
  • Hinged top canopy for easy control gear access and one piece bowl for improved sealing and maintenance requirements
  • Horizontal lamp versions with aluminium optic for enhanced performance
  • IP66 optic for lamp options from 50W to 250W

Materials and Finish

Lantern Body: Stainless steel, finished black (RAL 9005), or aged copper. Lantern Top: GRP/Polyester. Gasket: Silicone. Gear Tray: Aluminium + GRP/Polyester. Horizontal lamp versions have aluminium reflector optic. Bowl: Clear/opal/water droplet effect UV resistant, high impact acrylic.

Installation and Mounting

Hinged canopy top provides access to gear tray. Recommended mounting height 3-6m. Post-top: Choice of 60mm or 76mm spigot cap. Suspended versions fix via Ø27G (3/4 inch BSP gas pitch) thread. Dedicated brackets and accessories available.


To specify state: Post-top/suspended mounted Victorian style lantern in black/aged copper for vertical/horizontal lamp orientation. Integral control gear with hinged canopy. As Thorn EP 145.

New Product
LumExpress Product
eControl Product

EP 145 Lanterns with clear bowls

Description   Wt (kg)SAP Code
EP 145 RCU/MSU CL/AC7.5096006029
EP 145 RCU/MTP CL/AC7.4096006027
EP 145 RS/MSU CL/AC13.0096002355
EP 145 RS/MTP CL/AC5.7096002356

EP 145 Lanterns with opal bowls

Description   Wt (kg)SAP Code
EP 145 RCU/MSU EOP/AC7.5096006030
EP 145 RCU/MTP EOP/AC7.4096006028
EP 145 RS/MSU EOP/AC5.7096002357
EP 145 RS/MTP EOP/AC5.7096002358

EP 145 Gears with vertical lamps

Description   TypeSocketWt (kg)SAP Code
EP 145 GT 100W 230V HSTSEE403.0096006034
EP 145 GT 150W 230V HSTSEE403.3096006035
EP 145 GT 250W 230V HSTSEE405.3096006036
EP 145 GT 50/70W 230V HSTSEE273.2096002361
EP 145 GT 70W 230V HSE-ISE/IE272.9096006033
EP 145 GT 70W 230V HSTSEE272.8096102442
EP 145 GT E271.6096002359
EP 145 GT E401.5096011289

EP 145 Gears with horizontal lamps

Description   TypeSocketWt (kg)SAP Code
EP 145 GT 100W 230V HST RALSTE403.2096002369
EP 145 GT 150W 230V HST RALSTE403.9096006032
EP 145 GT 70W 230V HSE-I RALSE/IE272.7096215990
EP 145 GT 70W 230V HST RALSTE272.9096002374

EP 145 Accessories

Description   Wt (kg)SAP Code
MA D60/27G GALVA + NUT0.7096006044

EP 145 Brackets

Description   Wt (kg)SAP Code
WY BRA 0,5M MWA S27G5.4096002212
