EP 445

  • EP 445

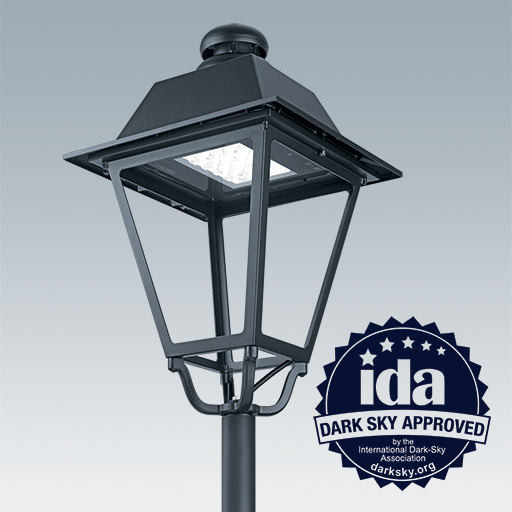

A 19th century style LED lantern to refurbish traditional streets and historic areas with a durable energy efficient solution

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
  • Traditional black lantern with coordinated columns and brackets to seamlessly integrate into the environment
  • High quality optical system to increase performance significantly for the replacement of old light sources, 4000K and 3000K colour temperature as standard, 2200K available on request for areas requiring a particularly warm ambience
  • Low cost of ownership: lifetime 100,000h (25°C, L80), integrated dimming for further energy savings
  • Quick installation with choice of suspended and post top mountings to cover applications ranging from residential streets to city squares

Materials and Finish

Lantern body and top: die-cast aluminum , finish black (RAL 9005) textured, standard corrosion class: C3.
Gasket: silicone
Enclosure: extra clear glass 4 mm

Installation and Mounting

Post top or suspended mounting, recommended height up to 6m.

Post top:
On steel Meleze columns Ø 60mm with adaptor (code 96629564).
On die-cast columns with threaded spigot.

Suspended:
Fixing on Andely and Le Mail brackets or consoles through Ø 27G threaded tube.
Universal joint code 96262636 allowing compensation of any possible default of verticality support in case of straight fixing.

Access to replaceable LED plate via 4 screws after opening the hinged canopy with 1 screw. Delivered in kit to be assembled through 3 easy steps. Pre-wiring to be added through a 4th additional step before installation on the pole, delivered with a 5m cable H07-RNF as standard for post top version, all supplied in one box. Complete with factory setting 700mA integrated Bi-Power dimming, switchable by the installer to 3 other dimming profiles, 525mA or 350mA, and no dimming.

Specification

To specify state:
IP66 post top and suspended 19th century style die-cast aluminum lantern up to 122lm/W efficiency, black textured finish, with asymmetrical and rotational symmetric optics, dimming system, and co-ordinated columns and brackets.
As Thorn EP 445

New Product
LumExpress Product
eControl Product

EP 445, narrow road optic, post top mounting

EP 445, narrow road optic, suspended

EP 445, street comfort optic, post top mounting

EP 445, street comfort optic, suspended

EP 445, rotationally symmetric optic, post top mounting

EP 445 accessories

Description   Wt (kg)SAP Code
EP445 D60 COL/ADAPTOR R9005TX0.8096629564
EP445 D76 COL/ADAPTOR R9005TX0.9096631773
EP445 LED ECL/PC1.8096634047
