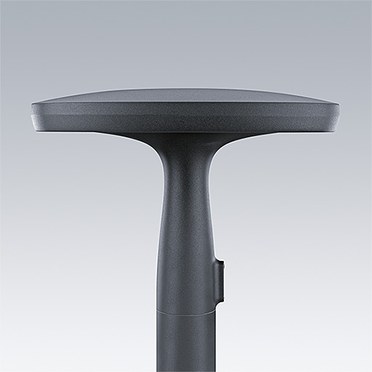

FleXity
Discreet and versatile LED lantern with a fast return on investment for city space lighting
- Modern, discreet and versatile post top LED lantern which is easy to integrate into the cityscape and residential areas
- 100 000 hour maintenance free lifetime for fast return on investment and low total cost of ownership
- LED light source, dedicated optics and integrated Bi-power dimming for energy savings. Compatible with DALI, 1-10V, RF, Power Line, Minicell, Nema, Presence Detection

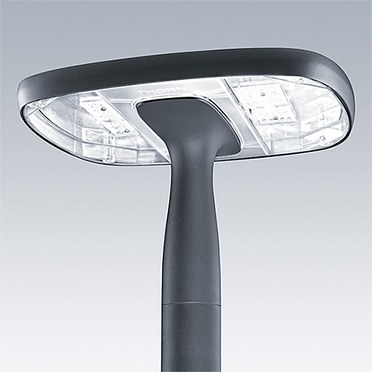

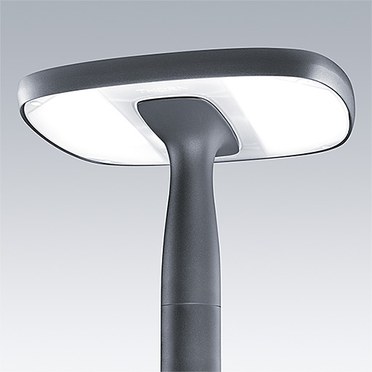

- Two enclosures: clear for optimised performance and diffuse for optimised comfort
Materials and Finish
Canopy and base: die cast aluminium (EN AC-46100), powder coated dark grey (close to RAL 7043) or light grey (close to RAL 9006) finish
Flat enclosures: clear UV stabilised polycarbonate diffuser
Installation and Mounting
Recommended mounting height: 3 to 6m
Distribution: clear glass: symmetric or asymmetric (street optic) and diffuser: radial symmetric
Post top mounting on spigot/columns Ø60mm or Ø76mm. Internal height of base 75mm
5m pre-wired version available
Connector version supplied with 1m wire and connector
Specification
To specify state:
Modern and discreet urban lantern with 100 000 hour lifetime with no maintenance required and providing from 1630 to 6330 Llm. No spare parts required.
As Thorn FleXity.
New Product
LumExpress Product
eControl Product
▼ FleXity, diffuse optic, 250mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-730 OP CL1 W5M D60 ANT | 20 | 1650 | LED | 4.50 | 96270775 | ||||
| FLEX 24L25-730 OP CL1 W5M D60 GY | 20 | 1650 | LED | 4.50 | 96642805 | ||||
| FLEX 24L25-730 OP CL1 W5M D76 ANT | 20 | 1650 | LED | 4.70 | 96270783 | ||||
| FLEX 24L25-730 OP CL1 W5M D76 GY | 20 | 1650 | LED | 4.70 | 96642813 | ||||
| FLEX 24L25-730 OP CL2 W5M D60 ANT | 20 | 1650 | LED | 4.50 | 96270771 | ||||
| FLEX 24L25-730 OP CL2 W5M D60 GY | 20 | 1650 | LED | 4.50 | 96642801 | ||||
| FLEX 24L25-730 OP CL2 W5M D76 ANT | 20 | 1650 | LED | 4.70 | 96270779 | ||||
| FLEX 24L25-730 OP CL2 W5M D76 GY | 20 | 1650 | LED | 4.70 | 96642809 | ||||
| FLEX 24L25-740 OP CL1 W5M D60 ANT | 20 | 1750 | LED | 4.50 | 96270776 | ||||
| FLEX 24L25-740 OP CL1 W5M D60 GY | 20 | 1750 | LED | 4.50 | 96642806 | ||||
| FLEX 24L25-740 OP CL1 W5M D76 ANT | 20 | 1750 | LED | 4.70 | 96270784 | ||||
| FLEX 24L25-740 OP CL1 W5M D76 GY | 20 | 1750 | LED | 4.70 | 96642814 | ||||
| FLEX 24L25-740 OP CL2 W5M D60 ANT | 20 | 1750 | LED | 4.50 | 96270772 | ||||
| FLEX 24L25-740 OP CL2 W5M D60 GY | 20 | 1750 | LED | 4.50 | 96642802 | ||||
| FLEX 24L25-740 OP CL2 W5M D76 ANT | 20 | 1750 | LED | 4.70 | 96270780 | ||||
| FLEX 24L25-740 OP CL2 W5M D76 GY | 20 | 1750 | LED | 4.70 | 96642810 |
▼ FleXity, diffuse optic, 500mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-740 OP CL1 HT W5M D60 ANT | 40 | 3250 | LED | 4.50 | 96271408 | ||||
| FLEX 24L50-740 OP CL1 HT W5M D60 GY | 40 | 3250 | LED | 4.50 | 96642894 | ||||
| FLEX 24L50-740 OP XIT CL1 CON D60 ANT | 40 | 3250 | LED | 3.90 | 96242264 |
▼ FleXity, diffuse optic, 700mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L70-740 OP CL1 HT W5M D60 ANT | 54 | 4300 | LED | 4.50 | 96271141 | ||||
| FLEX 24L70-740 OP CL1 HT W5M D60 GY | 54 | 4300 | LED | 4.50 | 96642875 |
▼ FleXity, wide street comfort optic, symmetric, 250mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-730 WSC-S CL1 W5M D60 ANT | 20 | 1800 | LED | 4.50 | 96271207 | ||||
| FLEX 24L25-730 WSC-S CL1 W5M D60 GY | 20 | 1800 | LED | 4.50 | 96642878 | ||||
| FLEX 24L25-730 WSC-S CL1 W5M D76 ANT | 20 | 1800 | LED | 4.70 | 96271211 | ||||
| FLEX 24L25-730 WSC-S CL1 W5M D76 GY | 20 | 1800 | LED | 4.70 | 96642882 | ||||
| FLEX 24L25-730 WSC-S CL2 W5M D60 ANT | 20 | 1800 | LED | 4.50 | 96271205 | ||||
| FLEX 24L25-730 WSC-S CL2 W5M D60 GY | 20 | 1800 | LED | 4.50 | 96642876 | ||||
| FLEX 24L25-730 WSC-S CL2 W5M D76 ANT | 20 | 1800 | LED | 4.70 | 96271209 | ||||
| FLEX 24L25-730 WSC-S CL2 W5M D76 GY | 20 | 1800 | LED | 4.70 | 96642880 | ||||
| FLEX 24L25-740 WSC-S CL1 W5M D60 ANT | 20 | 1950 | LED | 4.50 | 96271208 | ||||
| FLEX 24L25-740 WSC-S CL1 W5M D60 GY | 20 | 1950 | LED | 4.50 | 96642879 | ||||
| FLEX 24L25-740 WSC-S CL1 W5M D76 ANT | 20 | 1950 | LED | 4.70 | 96271212 | ||||
| FLEX 24L25-740 WSC-S CL1 W5M D76 GY | 20 | 1950 | LED | 4.70 | 96642883 | ||||
| FLEX 24L25-740 WSC-S CL2 W5M D60 ANT | 20 | 1950 | LED | 4.50 | 96271206 | ||||
| FLEX 24L25-740 WSC-S CL2 W5M D60 GY | 20 | 1950 | LED | 4.50 | 96642877 | ||||
| FLEX 24L25-740 WSC-S CL2 W5M D76 ANT | 20 | 1950 | LED | 4.70 | 96271210 | ||||
| FLEX 24L25-740 WSC-S CL2 W5M D76 GY | 20 | 1950 | LED | 4.70 | 96642881 |
▼ FleXity, wide street comfort optic, symmetric, 500mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-730 WSC-S CL1 W5M D60 ANT | 40 | 3350 | LED | 4.50 | 96270777 | ||||
| FLEX 24L50-730 WSC-S CL1 W5M D60 GY | 40 | 3350 | LED | 4.50 | 96642807 | ||||
| FLEX 24L50-730 WSC-S CL1 W5M D76 ANT | 40 | 3350 | LED | 4.70 | 96270785 | ||||
| FLEX 24L50-730 WSC-S CL1 W5M D76 GY | 40 | 3350 | LED | 4.70 | 96642815 | ||||
| FLEX 24L50-730 WSC-S CL2 W5M D60 ANT | 40 | 3350 | LED | 4.50 | 96270773 | ||||
| FLEX 24L50-730 WSC-S CL2 W5M D60 GY | 40 | 3350 | LED | 4.50 | 96642803 | ||||
| FLEX 24L50-730 WSC-S CL2 W5M D76 ANT | 40 | 3350 | LED | 4.70 | 96270781 | ||||
| FLEX 24L50-730 WSC-S CL2 W5M D76 GY | 40 | 3350 | LED | 4.70 | 96642811 | ||||
| FLEX 24L50-740 WSC-S CL1 W5M D60 ANT | 40 | 3600 | LED | 4.50 | 96270778 | ||||
| FLEX 24L50-740 WSC-S CL1 W5M D60 GY | 40 | 3600 | LED | 4.50 | 96642808 | ||||
| FLEX 24L50-740 WSC-S CL1 W5M D76 ANT | 40 | 3600 | LED | 4.70 | 96270786 | ||||
| FLEX 24L50-740 WSC-S CL1 W5M D76 GY | 40 | 3600 | LED | 4.70 | 96642816 | ||||
| FLEX 24L50-740 WSC-S CL2 W5M D60 ANT | 40 | 3600 | LED | 4.50 | 96270774 | ||||
| FLEX 24L50-740 WSC-S CL2 W5M D60 GY | 40 | 3600 | LED | 4.50 | 96642804 | ||||
| FLEX 24L50-740 WSC-S CL2 W5M D76 ANT | 40 | 3600 | LED | 4.70 | 96270782 | ||||
| FLEX 24L50-740 WSC-S CL2 W5M D76 GY | 40 | 3600 | LED | 4.70 | 96642812 |
▼ FleXity, wide street comfort optic, symmetric, 500mA, bi-power
▼ FleXity, wide street comfort optic, symmetric, 700mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L70-740 WSC-S CL1 HT W5M D60 ANT | 54 | 4750 | LED | 4.50 | 96271140 | ||||
| FLEX 24L70-740 WSC-S CL1 HT W5M D60 GY | 54 | 4750 | LED | 4.50 | 96642874 | ||||
| FLEX 24L70-740 WSC-S CL2 W5M D60 ANT | 54 | 4750 | LED | 4.50 | 96276297 |
▼ FleXity, wide street comfort optic, symmetric, 1050mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L105-730 WSC-S CL1 W5M D60 ANT | 83 | 6100 | LED | 4.50 | 96271117 | ||||
| FLEX 24L105-730 WSC-S CL1 W5M D60 GY | 83 | 6100 | LED | 4.50 | 96642851 | ||||
| FLEX 24L105-730 WSC-S CL1 W5M D76 ANT | 83 | 6100 | LED | 4.70 | 96271121 | ||||
| FLEX 24L105-730 WSC-S CL1 W5M D76 GY | 83 | 6100 | LED | 4.70 | 96642855 | ||||
| FLEX 24L105-730 WSC-S CL2 W5M D60 ANT | 83 | 6100 | LED | 4.50 | 96271109 | ||||
| FLEX 24L105-730 WSC-S CL2 W5M D60 GY | 83 | 6100 | LED | 4.50 | 96642843 | ||||
| FLEX 24L105-730 WSC-S CL2 W5M D76 ANT | 83 | 6100 | LED | 4.70 | 96271113 | ||||
| FLEX 24L105-730 WSC-S CL2 W5M D76 GY | 83 | 6100 | LED | 4.70 | 96642847 | ||||
| FLEX 24L105-740 WSC-S CL1 W5M D60 ANT | 83 | 6550 | LED | 4.50 | 96271118 | ||||
| FLEX 24L105-740 WSC-S CL1 W5M D60 GY | 83 | 6550 | LED | 4.50 | 96642852 | ||||
| FLEX 24L105-740 WSC-S CL1 W5M D76 ANT | 83 | 6550 | LED | 4.70 | 96271122 | ||||
| FLEX 24L105-740 WSC-S CL1 W5M D76 GY | 83 | 6550 | LED | 4.70 | 96642856 | ||||
| FLEX 24L105-740 WSC-S CL2 W5M D60 ANT | 83 | 6550 | LED | 4.50 | 96271110 | ||||
| FLEX 24L105-740 WSC-S CL2 W5M D60 GY | 83 | 6550 | LED | 4.50 | 96642844 | ||||
| FLEX 24L105-740 WSC-S CL2 W5M D76 ANT | 83 | 6550 | LED | 4.70 | 96271114 | ||||
| FLEX 24L105-740 WSC-S CL2 W5M D76 GY | 83 | 6550 | LED | 4.70 | 96642848 |
▼ FleXity, wide street comfort optic, symmetric, 1050mA, bi-power
▼ FleXity, wide street comfort optic, asymmetric, 250mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-730 WSC-A CL1 W5M D60 ANT | 20 | 1900 | LED | 4.50 | 96271223 | ||||
| FLEX 24L25-730 WSC-A CL1 W5M D60 GY | 20 | 1900 | LED | 4.50 | 96642886 | ||||
| FLEX 24L25-730 WSC-A CL1 W5M D76 ANT | 20 | 1900 | LED | 4.70 | 96271227 | ||||
| FLEX 24L25-730 WSC-A CL1 W5M D76 GY | 20 | 1900 | LED | 4.70 | 96642890 | ||||
| FLEX 24L25-730 WSC-A CL2 W5M D60 ANT | 20 | 1900 | LED | 4.50 | 96271221 | ||||
| FLEX 24L25-730 WSC-A CL2 W5M D60 GY | 20 | 1900 | LED | 4.50 | 96642884 | ||||
| FLEX 24L25-730 WSC-A CL2 W5M D76 ANT | 20 | 1900 | LED | 4.70 | 96271225 | ||||
| FLEX 24L25-730 WSC-A CL2 W5M D76 GY | 20 | 1900 | LED | 4.70 | 96642888 | ||||
| FLEX 24L25-740 WSC-A CL1 W5M D60 ANT | 20 | 2000 | LED | 4.50 | 96271224 | ||||
| FLEX 24L25-740 WSC-A CL1 W5M D60 GY | 20 | 2000 | LED | 4.50 | 96642887 | ||||
| FLEX 24L25-740 WSC-A CL1 W5M D76 ANT | 20 | 2000 | LED | 4.70 | 96271228 | ||||
| FLEX 24L25-740 WSC-A CL1 W5M D76 GY | 20 | 2000 | LED | 4.70 | 96642891 | ||||
| FLEX 24L25-740 WSC-A CL2 W5M D60 ANT | 20 | 2000 | LED | 4.50 | 96271222 | ||||
| FLEX 24L25-740 WSC-A CL2 W5M D60 GY | 20 | 2000 | LED | 4.50 | 96642885 | ||||
| FLEX 24L25-740 WSC-A CL2 W5M D76 ANT | 20 | 2000 | LED | 4.70 | 96271226 | ||||
| FLEX 24L25-740 WSC-A CL2 W5M D76 GY | 20 | 2000 | LED | 4.70 | 96642889 |
▼ FleXity, wide street comfort optic, asymmetric, 500mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-730 WSC-A CL1 W5M D60 ANT | 40 | 3500 | LED | 4.50 | 96270789 | ||||
| FLEX 24L50-730 WSC-A CL1 W5M D60 GY | 40 | 3500 | LED | 4.50 | 96642819 | ||||
| FLEX 24L50-730 WSC-A CL1 W5M D76 ANT | 40 | 3350 | LED | 4.70 | 96270793 | ||||
| FLEX 24L50-730 WSC-A CL1 W5M D76 GY | 40 | 3350 | LED | 4.70 | 96642823 | ||||
| FLEX 24L50-730 WSC-A CL2 W5M D60 ANT | 40 | 3500 | LED | 4.50 | 96270787 | ||||
| FLEX 24L50-730 WSC-A CL2 W5M D60 GY | 40 | 3500 | LED | 4.50 | 96642817 | ||||
| FLEX 24L50-730 WSC-A CL2 W5M D76 ANT | 40 | 3500 | LED | 4.70 | 96270791 | ||||
| FLEX 24L50-730 WSC-A CL2 W5M D76 GY | 40 | 3500 | LED | 4.70 | 96642821 | ||||
| FLEX 24L50-740 WSC-A CL1 W5M D60 ANT | 40 | 3800 | LED | 4.50 | 96270790 | ||||
| FLEX 24L50-740 WSC-A CL1 W5M D60 GY | 40 | 3800 | LED | 4.50 | 96642820 | ||||
| FLEX 24L50-740 WSC-A CL1 W5M D76 ANT | 40 | 3800 | LED | 4.70 | 96270794 | ||||
| FLEX 24L50-740 WSC-A CL1 W5M D76 GY | 40 | 3800 | LED | 4.70 | 96642824 | ||||
| FLEX 24L50-740 WSC-A CL2 W5M D60 ANT | 40 | 3800 | LED | 4.50 | 96270788 | ||||
| FLEX 24L50-740 WSC-A CL2 W5M D60 GY | 40 | 3800 | LED | 4.50 | 96642818 | ||||
| FLEX 24L50-740 WSC-A CL2 W5M D76 ANT | 40 | 3800 | LED | 4.70 | 96270792 | ||||
| FLEX 24L50-740 WSC-A CL2 W5M D76 GY | 40 | 3800 | LED | 4.70 | 96642822 |
▼ FleXity, wide street comfort optic, asymmetric, 500mA, bi-power
▼ FleXity, wide street comfort optic, asymmetric, 700mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L70-740 WSC-A CL1 HT W5M D60 ANT | 54 | 5000 | LED | 4.50 | 96271139 | ||||
| FLEX 24L70-740 WSC-A CL1 HT W5M D60 GY | 54 | 5000 | LED | 4.50 | 96642873 |
▼ FleXity, wide street comfort optic, asymmetric, 1050mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L105-730 WSC-A CL1 W5M D60 ANT | 83 | 6400 | LED | 4.50 | 96271133 | ||||
| FLEX 24L105-730 WSC-A CL1 W5M D60 GY | 83 | 6400 | LED | 4.50 | 96642867 | ||||
| FLEX 24L105-730 WSC-A CL1 W5M D76 ANT | 83 | 6400 | LED | 4.70 | 96271137 | ||||
| FLEX 24L105-730 WSC-A CL1 W5M D76 GY | 83 | 6400 | LED | 4.70 | 96642871 | ||||
| FLEX 24L105-730 WSC-A CL2 W5M D60 ANT | 83 | 6400 | LED | 4.50 | 96271125 | ||||
| FLEX 24L105-730 WSC-A CL2 W5M D60 GY | 83 | 6400 | LED | 4.50 | 96642859 | ||||
| FLEX 24L105-730 WSC-A CL2 W5M D76 ANT | 83 | 6400 | LED | 4.70 | 96271129 | ||||
| FLEX 24L105-730 WSC-A CL2 W5M D76 GY | 83 | 6400 | LED | 4.70 | 96642863 | ||||
| FLEX 24L105-740 WSC-A CL1 W5M D60 ANT | 83 | 6900 | LED | 4.50 | 96271134 | ||||
| FLEX 24L105-740 WSC-A CL1 W5M D60 GY | 83 | 6900 | LED | 4.50 | 96642868 | ||||
| FLEX 24L105-740 WSC-A CL1 W5M D76 ANT | 83 | 6900 | LED | 4.70 | 96271138 | ||||
| FLEX 24L105-740 WSC-A CL1 W5M D76 GY | 83 | 6900 | LED | 4.70 | 96642872 | ||||
| FLEX 24L105-740 WSC-A CL2 W5M D60 ANT | 83 | 6900 | LED | 4.50 | 96271126 | ||||
| FLEX 24L105-740 WSC-A CL2 W5M D60 GY | 83 | 6900 | LED | 4.50 | 96642860 | ||||
| FLEX 24L105-740 WSC-A CL2 W5M D76 ANT | 83 | 6900 | LED | 4.70 | 96271130 | ||||
| FLEX 24L105-740 WSC-A CL2 W5M D76 GY | 83 | 6900 | LED | 4.70 | 96642864 |
▼ FleXity, wide street comfort optic, asymmetric, 1050mA, bi-power
▼ FleXity, extra wide road optic, asymmetric, 250mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L25-740 EWR-A CL1 CON D60 ANT | 20 | 2150 | LED | 4.50 | 96627907 | ||||
| FLEX 24L25-740 EWR-A CL1 CON D60 GY | 20 | 2150 | LED | 4.50 | 96642898 |
▼ FleXity, extra wide road optic, asymmetric, 500mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L50-740 EWR-A CL1 CON D60 ANT | 40 | 4000 | LED | 4.50 | 96627904 | ||||
| FLEX 24L50-740 EWR-A CL1 CON D60 GY | 40 | 4000 | LED | 4.50 | 96642895 |
▼ FleXity, extra wide road optic, asymmetric, 700mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L70-740 EWR-A CL1 CON D60 ANT | 54 | 5300 | LED | 4.50 | 96627905 | ||||
| FLEX 24L70-740 EWR-A CL1 CON D60 GY | 54 | 5300 | LED | 4.50 | 96642896 |
▼ FleXity, extra wide road optic, asymmetric, 1050mA
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| FLEX 24L105-740 EWR-A CL1 CON D60 ANT | 83 | 7250 | LED | 4.50 | 96627906 | ||||
| FLEX 24L105-740 EWR-A CL1 CON D60 GY | 83 | 7250 | LED | 4.50 | 96642897 |
