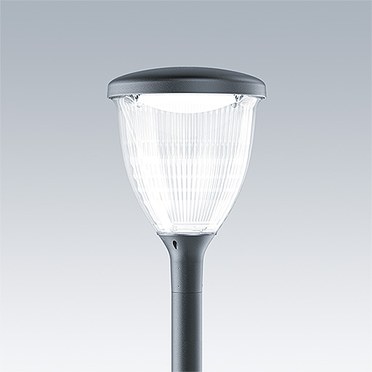

Volupto
The new identity for your city. An elegant urban lantern combining technology and tradition
- Offers a new decorative approach for city environments, modern and contemporary at the same time
- Designed around technology, Volupto offers attractive lighting performances with a wide variety of light distribution options
- With its high-tech mixing chamber, Volupto minimizes glare and maximizes efficiency for an unobtrusive luminous effect
- A truly intelligent luminaire with fully integrated motion solution together with further connectivity options
Materials and Finish
Base and canopy: corrosion resistant die cast powder-coated aluminium finished texturized anthracite grey (close to RAL7043), additional colours on request.
Diffuser: UV stabilised polycarbonate (up to IK10).
Internal reflector: highly reflective white.
Installation and Mounting
Post top mounting: Ø60mm. Low weight for ease of manipulation. Pre-wired for ease of installation, 1 tool. 120° fixing screws for perfect adjustment on the pole. Maintenance with access from above, 1 tool.
Specification
To specify state:
Decorative post top LED lantern with a unique design, extensive optical, lumen and light distribution choice for many urban applications. Efficient (up to 144 Lm/W) R-PEC or A-PEC optic with a choice of light distributions for precise light placement with minimum waste of light. Comfortable for citizens, thanks to an optimized diffuser. Wide range of intelligent lighting control solutions from stand-alone dimming to full remote control via central monitoring system. Attractive modern and contemporary design.
As Thorn Volupto
▼ Volupto, Radial symmetric optic
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| VO 18L105-740 SF RS CL1 W5 T60 ANT | 60 | 7129 | LED | 7.59 | 96631909 | ||||
| VO 18L105-740 SF RS CL2 W5 T60 ANT | 60 | 7129 | LED | 7.48 | 96631908 | ||||
| VO 18L35-740 SF RS CL1 W5 T60 ANT | 20 | 2734 | LED | 7.59 | 96631903 | ||||
| VO 18L35-740 SF RS CL2 W5 T60 ANT | 20 | 2734 | LED | 7.48 | 96631902 | ||||
| VO 18L50-740 SF RS CL1 W5 T60 ANT | 28 | 3770 | LED | 7.59 | 96631905 | ||||
| VO 18L50-740 SF RS CL2 W5 T60 ANT | 28 | 3770 | LED | 7.48 | 96631904 | ||||
| VO 18L70-740 SF RS CL1 W5 T60 ANT | 40 | 5073 | LED | 7.59 | 96631907 | ||||
| VO 18L70-740 SF RS CL2 W5 T60 ANT | 40 | 5073 | LED | 7.48 | 96631906 |
▼ Volupto, Wide street comfort optic
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| VO 12L105-740 SF WSC CL1 W5 T60 ANT | 41 | 4811 | LED | 7.53 | 96631895 | ||||
| VO 12L105-740 SF WSC CL2 W5 T60 ANT | 41 | 4811 | LED | 7.42 | 96631894 | ||||
| VO 12L35-740 SF WSC CL1 W5 T60 ANT | 14 | 1836 | LED | 7.53 | 96631889 | ||||
| VO 12L35-740 SF WSC CL2 W5 T60 ANT | 14 | 1836 | LED | 7.42 | 96631888 | ||||
| VO 12L50-740 SF WSC CL1 W5 T60 ANT | 19 | 2534 | LED | 7.53 | 96631891 | ||||
| VO 12L50-740 SF WSC CL2 W5 T60 ANT | 19 | 2534 | LED | 7.42 | 96631890 | ||||
| VO 12L70-740 SF WSC CL1 W5 T60 ANT | 27 | 3414 | LED | 7.53 | 96631893 | ||||
| VO 12L70-740 SF WSC CL2 W5 T60 ANT | 27 | 3414 | LED | 7.42 | 96631892 | ||||
| VO 24L35-740 SF WSC CL1 W5 T60 ANT | 26 | 3654 | LED | 7.59 | 96631897 | ||||
| VO 24L35-740 SF WSC CL2 W5 T60 ANT | 26 | 3654 | LED | 7.47 | 96631896 | ||||
| VO 24L50-740 SF WSC CL1 W5 T60 ANT | 37 | 5026 | LED | 7.59 | 96631899 | ||||
| VO 24L50-740 SF WSC CL2 W5 T60 ANT | 37 | 5026 | LED | 7.47 | 96631898 | ||||
| VO 24L70-740 SF WSC CL1 W5 T60 ANT | 52 | 6732 | LED | 7.59 | 96631901 | ||||
| VO 24L70-740 SF WSC CL2 W5 T60 ANT | 52 | 6732 | LED | 7.47 | 96631900 |
