Volupto / VO 24L70-740 WSC CL1 W5 T60 ANT

96631901

Data Sheet

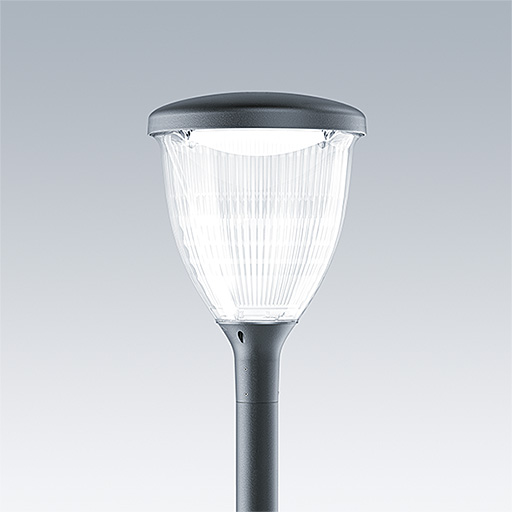

A smart, post top LED lantern with a Wide Street & Comfort distribution. LED driver with 24 LEDs driven at 700mA. Class I electrical, IP66, IK10. Canopy and base: corrosion resistant die-cast powder coated aluminium, finished textured anthracite (close to RAL7043). Enclosure: UV stabilised polycarbonate. Complete with 4000K LED. Pre-wired with 5m cable.

Dimensions: Ø78/406 x 571 mm
Total power: 52 W
Luminaire luminous flux: 6732 lm
Luminaire efficacy: 129 lm/W
Weight: 7.59 kg
Scx: 0.143 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6732 lm
  • Luminaire efficacy*:129 lm/W
  • Lamp efficacy:129 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam)*:5
  • Rated useful life (B10)*:100000h L90 at 25°C
  • Ballast:1x LED_DRV
  • Luminaire input power*:52 W
  • LED
  • CE
  • IK10
  • IP66
  • RCM
  • Electrical class I
