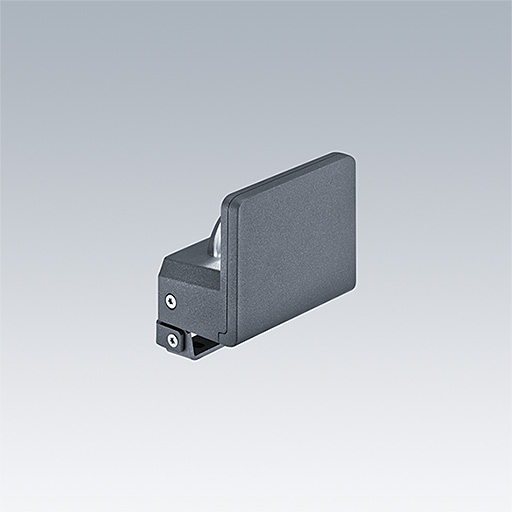

Raze Architectural / RAA S 1L35-830 HFX/R 6K MSF ANT

96632096

Data Sheet

A compact, surface mounted, LED wall grazer, incorporating Thorn's Flat beam® technology. 1 LED driven at 350mA. Remote DALI dimmable LED driver included. Class II electrical, IP66, IK08. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stablised polycarbonate, frosted. Fasteners: stainless steel. Complete with 3000K LED.

S version driver capable of supplying up to three luminaires.
MSF variant with adjustable tilt up to ±15°.
MWA variant flush mounting.
6kV surge protection as standard, all versions pre-wired.

Dimensions: 109 x 110 x 72 mm
Total power: 6 W
Luminaire luminous flux: 350 lm
Luminaire efficacy: 58 lm/W
Weight: 0.84 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:350 lm
  • Luminaire efficacy*:58 lm/W
  • Lamp efficacy:58 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam)*:3
  • Rated useful life (B10)*:100000h L70 at 25°C
  • Ballast:1x LED_DRV
  • Luminaire input power*:6 W
  • Dimming:DaliDim
  • LED
  • CE
  • IK10
  • IP66
  • RCM
  • SC2 - Protection Class 2
