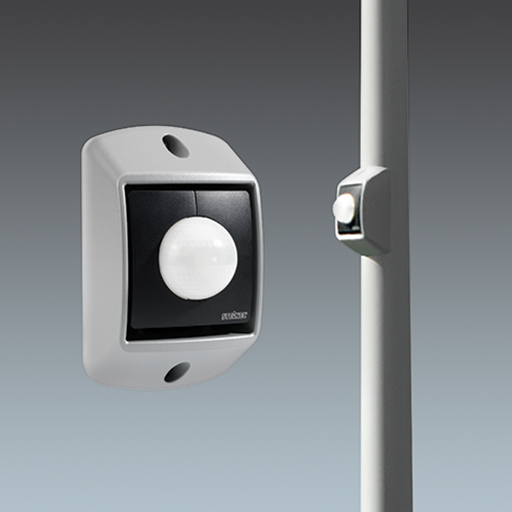

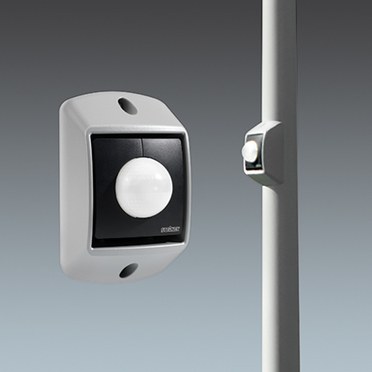

MovU PIR Lateral
High performance PIR motion detection for pedestrians, cyclists and slow cars to maximise energy savings and safety
- Combined with an LED luminaire dimmed to 20%, when motion is detected, the luminaire switches to 100%, ensuring maximum security
- Highly sensitive infrared sensor detects the invisible heat emitted from moving objects up to 20m
- Easy to mount on any pole regardless of the diameter and height
- Proven technology implemented on numerous projects over several years
Materials and Finish
Sensor: die cast aluminium (AS 13) housing (EN AC-44300), powder coated in grey, any RAL colour on request.
Standard corrosion class C5 according to ISO 9223: 2012.
Coordinated poles (France): painted cylindro-conical poles galvanised steel with invisible welding, drilled at 3,5m from ground to fix the device, heights proposed as standard 6 and 8m, diam 60 top, diam 134mm base, flange mounted 200mm spacings delivered with fixing bolts D16 M14. Door dimensions: H4000mm x 75mm, at 500mm from ground. Any RAL or texturised painting on request.
Installation and Mounting
To be screwed at 3 to 4m high on a pole with 2 stainless steel screws M6. Dedicated pre-drilled poles recommended to avoid corrosion issue or affecting column resistance. Pre-cabled with 4m CSA 4x1mm², connection with lantern at bottom of the pole.
Specification
To specify state:
Outdoor PIR device to be mounted on any column, to be combined with IP66 LED luminaires programmed in a corridor mode to detect pedestrians at 180°, cyclists or slow cars below 30km/h from 4 to 20m.
As Thorn MovU PIR Lateral.
▼ MovU PIR Lateral accessory
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MOVU PIR MLE MAX8-20M 30KM/H W4M | 1.90 | 96270238 |
▼ MovU PIR Lateral coordinated luminaires
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| EP145 LED 24L70 740 CL2 COR RS/MTP W8M | 8.90 | 96270764 | |||||||
| ISARO 36L70 NR EFL 740 CL1 COR MTP60 8M | LED | 5.50 | 96270766 | ||||||
| ISARO 36L70 NR EFL 740 CL2 COR MTP60 8M | LED | 5.40 | 96270765 | ||||||
| LEGEND 36L70 740 CL2 COR T60 W5M | LED | 17.50 | 96270763 |
