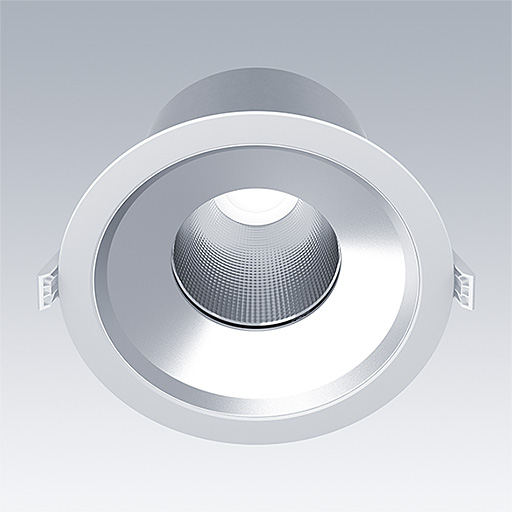

Chalice 3 / CHAL3 200 5000-830 EHF FL RSB

92989426

Data Sheet

A high efficient and sustainable LED downlight for high ceiling application with flood beam (29°) for high ceiling applications. Suitable for mounting in Ø200mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver with DC functionality, adjustable 50-100%, NFC configurable.Loop in - loop out possible. Body: die-cast aluminium for high efficient thermal management with recycling content >90%. Primary reflector: polycarbonate, glossy finish, facetted. Secondary optic and trim: polycarbonate smooth in satinbrite finish. Class II electrical, IP20. Complete with 3000K LED

Installation in concrete ceilings not permitted.

Dimensions: Ø223 x 134 mm
Luminaire input power: 44.1 W
Luminaire luminous flux: 5401 lm
Luminaire efficacy: 122 lm/W
Weight: 1.39 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:5401 lm
  • Luminaire efficacy*:122 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000701 LC 45W 500-1400mA flexC SR EXC
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:44.1 W Power factor = 0.95
  • Dimming:FIX
  • Maintenance category CIE 97:C - Closed Top Reflector
  • LED
  • CE
  • EAC
  • NoIsol
  • GLedReP
  • 850°
  • Hfree
  • IK07
  • IP20
  • LLedNr
  • RCM
  • RG1
  • SC2 - Protection Class 2
  • Ta=25
  • UKCA
