  • Feroz — <FEROZ LED8000-840 OP HFIX L1500 TW

Feroz / <FEROZ LED8000-840 OP HFIX L1500 TW

96630871

▼ Data Sheet

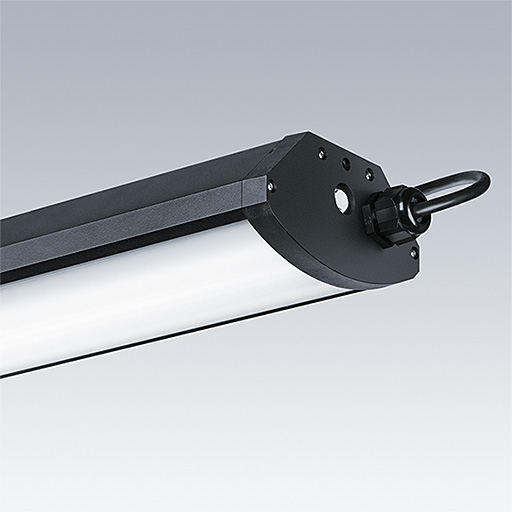

An IP66, IK10, dust and moisture resistant LED luminaire. Electronic, DALI dimmable control gear. Class II electrical. Body: extruded aluminium painted black (close to RAL9005). Diffuser: impact resistant opal UV stabilised polycarbonate. End caps: reinforced polyamide (PA), secured with stainless steel screws. For surface mounting, ceiling or wall (vertical or horizontal), corner mounting or suspended (chain, wire or tube), mounting kits to be ordered separately. Suitable for use in un-protected outdoor areas. Complete with through wiring. Complete with 4000K LED.

Dimensions: 1544 x 167 x 90 mm
Luminaire input power: 81.6 W
Luminaire luminous flux: 8137 lm
Luminaire efficacy: 100 lm/W
Weight: 6.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:8137 lm
  • Luminaire efficacy*:100 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 100000h at 25°C
    L80 70000h at 25°C
  • Ballast:1x EL2
  • Luminaire input power*:81.6 W
  • Standby Power*:0.2 W
  • Dimming:DA2
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • LED
  • CE
  • D
  • ENEC
  • GLedNr
  • IP66
  • LLedNr
  • RCM
  • SC2 - Protection Class 2
  • Ta=-40°C_to 50°C
  • VibrationRes
  • WindRes

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
