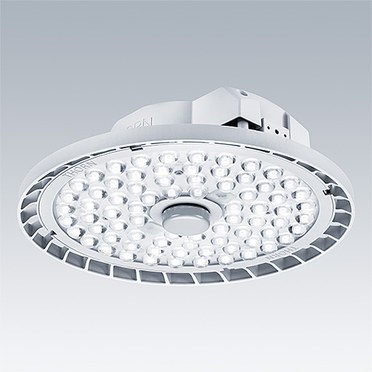

HiPak

  • HiPak
  • HiPak

The third generation of Thorn’s innovative industrial luminaire offers stunning performance and a compelling ROI

  • Highly efficient one-for-one replacement for conventional industrial luminaires – and with a higher efficacy than its predecessors, it promises a quicker payback than ever.
  • With two sizes and six lumen outputs ranging up to 35 000 lm, the third generation of HiPak is an ideal option for point-for-point replacements on retrofit projects.
  • With wide (WD) and rack (RK) light distributions available, and specially designed reflectors, HiPak is also suitable for applications such as retail, where appearance and visual comfort are high priorities.
  • HiPak enables greater energy savings through DALI versions, and motion and daylight sensor integration. An emergency option is also available.

Materials and Finish

Housing: Die cast aluminium (RAL 9006)
Lens/Diffuser: Polycarbonate
Luminaire is silicon free

Installation and Mounting

All luminaires are suitable for single point suspension. All wide optic luminaires (WD) are supplied with a mounting hook as standard (chain to be ordered separately: 96502605). For rack optic luminaires (RK) it is recommended to use the fixed rod suspension or surface wall mounting accessory (to be ordered separately). Mounting accessories to be ordered separately: stirrup for wall mounting (96631534 / 96631860), rod suspension for pendant mounting (96642766), wire suspension (96502609) and catenary suspension (96502610). Motion and daylight sensor can also be ordered as accessory (96630823). All luminaires are supplied pre-wired with a quick connector plug.

Specification

To specify state:
An IP65 single point suspension LED high bay luminaire with plug and play connection for rapid installation. Available in 10000lm, 15000lm, 20000lm, 25000lm, 30000lm, and 35000lm with a choice of rack or wide beam optic. Fixed output (HF) and DALI (HFI-X) available as standard.
As Thorn HiPak

New Product
LumExpress Product
eControl Product

▼ HiPak Wide optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
HIPAK LED20000-840 HF WD GEN3 HE12520323LED3.1596634327
HIPAK LED35000-840 HF WD GEN3 HE22035481LED4.8096634330

▼ HiPak Wide optic, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
HIPAK LED10000-840 HFI-X WD GEN3 HE6510510LED3.1596634331
HIPAK LED15000-840 HFI-X WD GEN3 HE10415538LED3.1596634332
HIPAK LED20000-840 HFI-X WD GEN3 HE12520323LED3.1596634333
HIPAK LED25000-840 HFI-X WD GEN3 HE16026487LED4.8096634334
HIPAK LED30000-840 HFI-X WD GEN3 HE19031095LED4.8096634335

▼ HiPak Rack optic

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
HIPAK LED25000-840 HF RK GEN3 HE16025127LED4.8096634340
HIPAK LED30000-840 HF RK GEN3 HE19030115LED4.8096634341

▼ HiPak Rack optic, dimmable

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
<HIPAK LED15000-840 HFI-X RK GEN3 HE9515164LED3.1596634344

▼ HiPak Accessories

Description   Wt (kg)SAP Code
<HIBAY CONNECTOR 3M + FEM PLUG (10PCS) G3.2096628869
HiPak E3 EMERGENCY BOX GEN31.4096631878
HIPAK EM CON 3M+FEM PLUG (10PCS) G2/315.4296631533
HIPAK MWS RF SENSOR MASTER GEN 30.0196633202
HIPAK MWS RF SENSOR REMOTE GEN 30.0196633204
HIPAK MWS RF SENSOR SLAVE GEN 30.0196633203
HIPAK ROD 1,0M + CEILING ROSE (6pcs.)0.4096642766
HIPAK STIRRUP L MCE/MWA (1pc.) G38.0096631860
HIPAK STIRRUP S MCE/MWA (1pc.) G30.5096631534
PR2/HIGH BAY CH0.1096502605
PR2/HIPAK FIX/CAT0.9096502610
PR2/HIPAK FIX/CH0.0496502603
PR2/HIPAK FIX/CHA0.0596502604
PR2/HIPAK MSW1 10000.0296502607
PR2/HIPAK MSW1 20000.0696502608
PR2/HIPAK MSW1 50000.0396502609
REFRACTOR GEN3 LARGE0.5396630822
REFRACTOR GEN3 SMALL0.4596630821
SENSOR MWS HIPAK GEN30.0896630823
