  • HiPak — HIPAK LED15000-840 HFI-X WD GEN3 HE

HiPak / HIPAK LED15000-840 HFI-X WD GEN3 HE

96634332

▼ Data Sheet

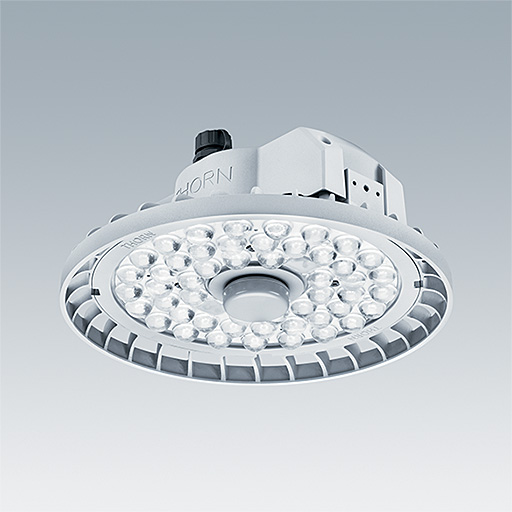

An IP65 single point suspension LED high bay luminaire with wide beam optic. DALI dimmable LED driver, for 220-240V, 50/60Hz supply. Class I electrical. IK08. Housing: die-cast aluminium. Lens/Diffuser: polycarbonate. Supplied with mounting hook. Equipped with quick fit electrical connection. Complete with 4000K LED.

Dimensions: Ø320 x 143 mm
Luminaire input power: 103.5 W
Luminaire luminous flux: 15538 lm
Luminaire efficacy: 150 lm/W
Weight: 3.15 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:15538 lm
  • Luminaire efficacy*:150 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 59010589 HIPAK LED15000-840 HFI-X WD GEN3
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L85 50000h at 25°C
    L85 50000h at 50°C
  • Luminaire input power*:103.5 W Power factor = 0.95
  • Dimming:DaliDim dimmable to 10%
  • Maintenance category:E - Dust-proof IP5X
  • LED
  • CE
  • D
  • GLedNr
  • 850°
  • IK08
  • IP65
  • LLedNr
  • Electrical class I
  • Ta=-30_+50

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
