  • HiPak — HIPAK LED35000-840 HF WD GEN3 HE

HiPak / HIPAK LED35000-840 HF WD GEN3 HE

96634330

▼ Data Sheet

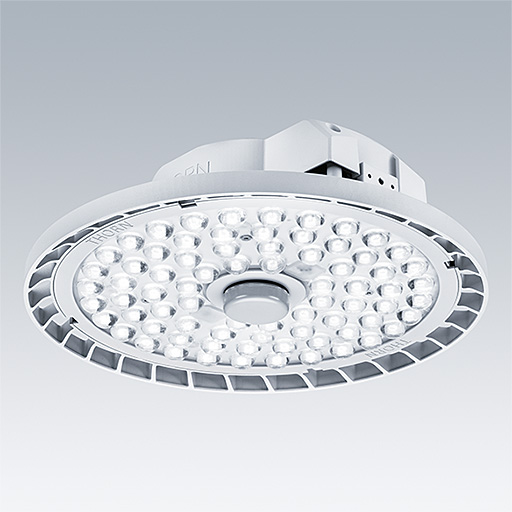

An IP65 single point suspension LED high bay luminaire with wide beam optic. LED driver, for 220-240V, 50/60Hz supply. Class I electrical. IK08. Housing: die-cast aluminium. Lens/Diffuser: polycarbonate. Supplied with mounting hook. Equipped with quick fit electrical connection. Complete with 4000K LED.

Dimensions: Ø380 x 147 mm
Luminaire input power: 220 W
Luminaire luminous flux: 35481 lm
Luminaire efficacy: 161 lm/W
Weight: 4.8 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:35481 lm
  • Luminaire efficacy*:161 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 59010587 HIPAK LED35000-840 HF WD GEN3
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L85 50000h at 25°C
    L85 50000h at 50°C
  • Luminaire input power*:220 W Power factor = 0.95
  • Maintenance category:E - Dust-proof IP5X
  • LED
  • CE
  • D
  • GLedNr
  • 850°
  • IK08
  • IP65
  • LLedNr
  • Electrical class I
  • Ta=-30_+50

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
