Petrelux 7 Series / PETRELUX P7 2x70w T26 HF


Data Sheet

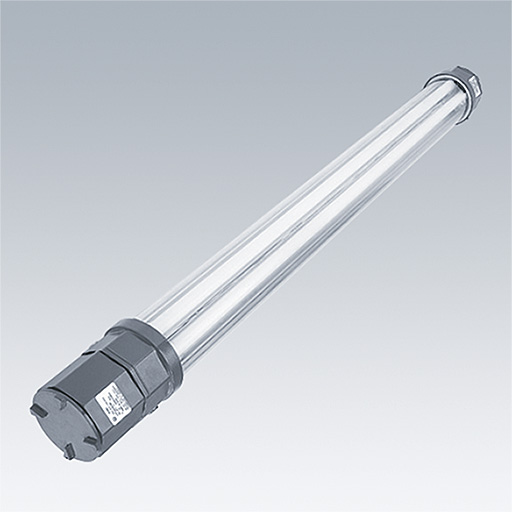

Zone 1 (ATEX Cat 2) fluorescent luminaire for 2 x 70W Light Source: 2 x T26 / 70W lamp. Integral high frequency electronic ballast. Body and covers manufactured from die cast aluminium alloy with Petrelux Green 2 pack epoxy paint finish. Overtube clear polycarbonate. IP66 to IEC 529. Certification code EEx de 11B for 36w, 58w and 70w T26 versions. EEx de 11C for 18w T26, 36w and 55w TC-L versions. Temperature class T6 ( 70w T26 versions T5)

Dimensions: 1926 x 140 x 158 mm
Luminaire input power: 130 W
Weight: 10 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:2 x T26 / 70W
  • Luminaire luminous flux*:7205 lm
  • Lamp luminous flux:2 x 6550 lm
  • Luminaire efficacy*:55 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1x HF Tridonic PC PRO
  • Luminaire input power*:130 W Power factor = 0.95
  • Maintenance category:E - Dust-proof IP5X
  • T26
  • CE
  • EAC
  • GConReP
  • 850°
  • IP66
  • LConReP
  • RCM
  • Electrical class I
  • SF_7
  • Ta=40 to 55
