IQ Wave

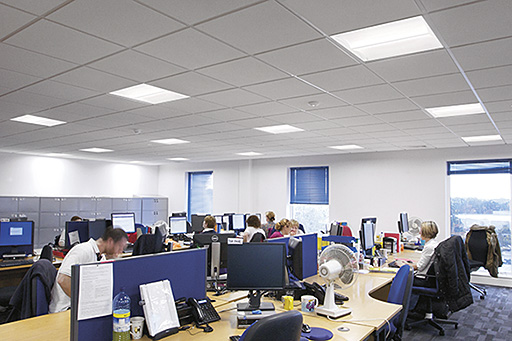

Our next generation office luminaire features intelligent innovation in 4 key areas, design, optic, control and installation
- Design: simple and flowing lines create a modern but simplistic aesthetic perfect for an elegant office interior
- Optics: innovative MV tech optic designed by our expert optical team offers excellent uniformity and glare control, direct/indirect light for illuminance on faces and walls to encourage a comfortable, communicative working environment
- Controls: Integrated sensors allow you to create flexible control systems suited to your needs. Wireless solution controlled via App with Bluetooth® 4.x - basicDim Wireless. Also available are integrated PIR and microwave sensors.
- Installation: with our new red flag design you can easily access the pull up set from below the ceiling without the need to remove the optics from the product, allowing for a more secure fixing to the ceiling
Materials and Finish
Frame and end caps: polycarbonate
Diffuser: polycarbonate, aluminium designed heatsink
Body: highly reflective steel coffer
Gear tray: pre-coated white steel
Installation and Mounting
Suitable for lay in, with accessory suitable for pull up into concealed grid and plasterboard ceilings.
Specification
To specify state:
A lightweight recessed luminaire for exposed T, plasterboard and concealed grid systems with MV tech optic. LED indirect light source. 3000K/4000K colour temperature, CRI>80 and a lifetime of 50 000 hours @ L90 Ta 25°C including high efficiency at 103 Llm/W, UGR<19. With control systems, PIR, MWS, BC.
As Thorn IQ Wave.
New Product
LumExpress Product
eControl Product
▼ IQ Wave
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE LED3100-830 HF Q597 MRE | 30 | 3050 | LED | 3.80 | 96628132 | ||||
IQ WAVE LED3100-830 HF Q597 MRG | 30 | 3050 | LED | 3.80 | 96628284 | ||||
IQ WAVE LED3100-830 HF Q622 MRE | 30 | 3050 | LED | 4.50 | 92900329 | ||||
IQ WAVE LED3100-840 HF Q597 MRE | 30 | 3200 | LED | 3.80 | 96628133 | ||||
IQ WAVE LED3100-840 HF Q597 MRG | 30 | 3200 | LED | 3.80 | 96628285 | ||||
IQ WAVE LED3100-840 HF Q622 MRE | 30 | 3200 | LED | 4.50 | 92900330 | ||||
IQ WAVE LED4100-830 HF Q597 MRE | 40 | 4050 | LED | 3.80 | 96628135 | ||||
IQ WAVE LED4100-830 HF Q597 MRG | 40 | 4050 | LED | 3.80 | 96628287 | ||||
IQ WAVE LED4100-830 HF Q622 MRE | 40 | 4050 | LED | 4.50 | 92900332 | ||||
IQ WAVE LED4100-840 HF Q597 MRE | 40 | 4250 | LED | 3.80 | 96628136 | ||||
IQ WAVE LED4100-840 HF Q597 MRG | 40 | 4250 | LED | 3.80 | 96628288 | ||||
IQ WAVE LED4100-840 HF Q622 MRE | 40 | 4250 | LED | 4.50 | 96628315 |
▼ IQ Wave, basicDIM
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE LED4100-840 BC Q597 MRE | 40 | 4250 | LED | 3.80 | 96631044 | ||||
IQ WAVE LED4100-840 BC Q597 MRG | 40 | 4250 | LED | 3.80 | 92906193 | ||||
IQ WAVE LED4100-840 BC Q622 MRE | 40 | 4250 | LED | 4.50 | 96631043 |
▼ IQ Wave configured articles
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE LED3100-830 HFIX Q597 MRE ML5 | 30 | 3050 | LED | 3.80 | 96628294 | ||||
IQ WAVE LED3100-840 HF MWS Q597 MRE | 30 | 3200 | LED | 3.80 | 92900292 | ||||
IQ WAVE LED4100-830 HFIX Q597 MRE ML5 | 40 | 4050 | LED | 3.80 | 96628295 | ||||
IQ WAVE LED4100-840 HF MWS Q597 MRE | 40 | 4250 | LED | 3.80 | 92900249 | ||||
IQ WAVE LED4100-840 HF MWS Q597 MRG | 40 | 4250 | LED | 3.80 | 92900318 |
▼ IQ Wave configured articles, emergency
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE LED3100-830 HF E3 Q597 MRE | 30 | 3050 | LED | 4.40 | 92900337 | ||||
IQ WAVE LED3100-840 HF E3 Q597 MRE | 30 | 3200 | LED | 4.40 | 96628316 | ||||
IQ WAVE LED4100-830 HF E3 Q597 MRE | 40 | 4050 | LED | 4.40 | 92900338 | ||||
IQ WAVE LED4100-840 HF E3 Q597 MRE | 40 | 4250 | LED | 4.40 | 96628317 |
▼ IQ Wave configured articles, dimmable
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE LED3100-830 HFIX Q597 MRE | 30 | 3050 | LED | 3.80 | 92900298 | ||||
IQ WAVE LED3100-830 HFIX Q597 MRG | 30 | 3050 | LED | 3.80 | 92900354 | ||||
IQ WAVE LED3100-830 HFIX Q622 MRE | 30 | 3050 | LED | 4.50 | 92900334 | ||||
IQ WAVE LED3100-840 HFIX Q597 MRE | 30 | 3200 | LED | 3.80 | 96628313 | ||||
IQ WAVE LED3100-840 HFIX Q597 MRG | 30 | 3200 | LED | 3.80 | 92900353 | ||||
IQ WAVE LED3100-840 HFIX Q622 MRE | 30 | 3200 | LED | 4.50 | 92900335 | ||||
IQ WAVE LED3100-840 HFSX Q597 MRE | 30 | 3200 | LED | 3.90 | 92900319 | ||||
IQ WAVE LED4100-830 HFIX Q597 MRE | 40 | 4050 | LED | 3.80 | 92900339 | ||||
IQ WAVE LED4100-830 HFIX Q597 MRG | 40 | 4050 | LED | 3.80 | 92900352 | ||||
IQ WAVE LED4100-830 HFIX Q622 MRE | 40 | 4050 | LED | 4.50 | 92900320 | ||||
IQ WAVE LED4100-830 HFSX Q597 MRE | 40 | 4050 | LED | 3.90 | 92900247 | ||||
IQ WAVE LED4100-840 HFIX Q597 MRE | 40 | 4250 | LED | 3.80 | 96628314 | ||||
IQ WAVE LED4100-840 HFIX Q597 MRG | 40 | 4250 | LED | 3.80 | 92900351 | ||||
IQ WAVE LED4100-840 HFIX Q622 MRE | 40 | 4250 | LED | 4.50 | 92900321 | ||||
IQ WAVE LED4100-840 HFSX Q597 MRE | 40 | 4250 | LED | 3.90 | 92900265 | ||||
IQ WAVE LED4100-840 HFSX Q597 MRG | 40 | 4250 | LED | 5.00 | 92900369 |
▼ IQ Wave, dimmable, emergency
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE LED3100-830 HFIX E3 Q597 MRE | 30 | 3050 | LED | 4.40 | 92900336 | ||||
IQ WAVE LED3100-830 HFIX E3TX Q597 MRE | 30 | 3050 | LED | 4.40 | 92900305 | ||||
IQ WAVE LED3100-830 HFIX E3TX Q622 MRE | 30 | 3050 | LED | 5.10 | 92900410 | ||||
IQ WAVE LED3100-840 HFIX E3 Q597 MRE | 30 | 3200 | LED | 4.40 | 92900290 | ||||
IQ WAVE LED3100-840 HFIX E3TX Q597 MRE | 30 | 3200 | LED | 4.40 | 92900246 | ||||
IQ WAVE LED3100-840 HFIX E3TX Q622 MRE | 30 | 3200 | LED | 5.10 | 92900296 | ||||
IQ WAVE LED4100-830 HFIX E3 Q597 MRE | 40 | 4050 | LED | 4.40 | 92900340 | ||||
IQ WAVE LED4100-830 HFIX E3TX Q597 MRE | 40 | 4050 | LED | 4.40 | 92900341 | ||||
IQ WAVE LED4100-830 HFIX E3TX Q622 MRE | 40 | 4050 | LED | 5.10 | 92900411 | ||||
IQ WAVE LED4100-840 HFIX E3 Q597 MRE | 40 | 4250 | LED | 4.40 | 92900266 | ||||
IQ WAVE LED4100-840 HFIX E3 Q622 MRG | 40 | 4250 | LED | 5.10 | 92900315 | ||||
IQ WAVE LED4100-840 HFIX E3TX Q597 MRE | 40 | 4250 | LED | 4.40 | 92900294 | ||||
IQ WAVE LED4100-840 HFIX E3TX Q622 MRE | 40 | 4250 | LED | 5.10 | 92900412 |
▼ IQ Wave accessory
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
IQ WAVE RED FLAG PULL UP KIT | 0.04 | 96628290 | |||||||
IQ WAVE RED FLAG PULL UP KIT 625 | 0.05 | 96628312 | |||||||
REMOTECONTROL IR6 | 0.02 | 28000647 |
