IQ Wave / IQ WAVE LED3100-830 HFIX Q597 MRE ML5

96628294

Data Sheet

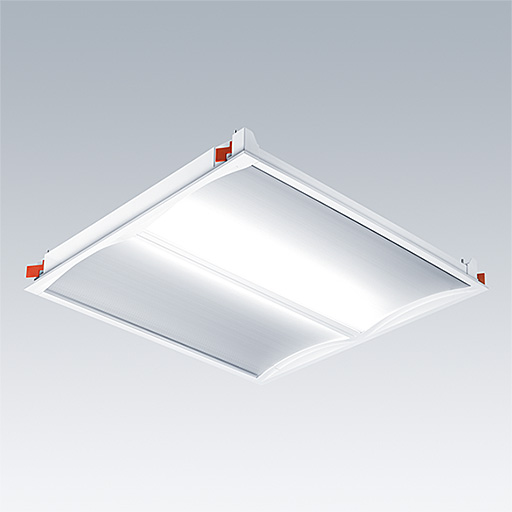

Recessed modular, direct LED luminaire. Electronic, DALI dimmable control gear. Class I electrical, IP44_IP20, IK03. Body: highly reflective steel. Frame and end caps: polycarbonate. Diffuser: polycarbonate with aluminium heatsink. Gear tray: powder coated white steel. Suitable for lay in or pull up (with accessory) installation. Fitted with 5 core cable. Complete with 3000K LED

Dimensions: 597 x 597 x 97 mm
Luminaire input power: 30 W
Luminaire luminous flux: 3050 lm
Luminaire efficacy: 102 lm/W
Weight: 3.8 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3050 lm
  • Luminaire efficacy*:102 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000655 LCA 50W 100-400mA one4all lp PRE
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Luminaire input power*:30 W Power factor = 0.92
  • Standby Power*:0.15 W
  • Dimming:DA2
  • Maintenance category CIE 97:C - Closed Top Reflector
  • Total harmonic distortion (THD):11.00 %
  • LED
  • CB
  • CE
  • ENEC11
  • GLedReP
  • 650°
  • IK03
  • IP44_IP20
  • LLedNr
  • RCM
  • Electrical class I
  • Ta= -20 to +25
