Omega Moduline
A sustainable LED panel utilising replaceable modular linear LED light source and driver for office and education applications.
- The key feature of OMEGA MODULINE is the ability to replace LED modules, drivers & sensors making it an upgradeable, more environmentally friendly option with prolonged lifetime with careful maintenance.

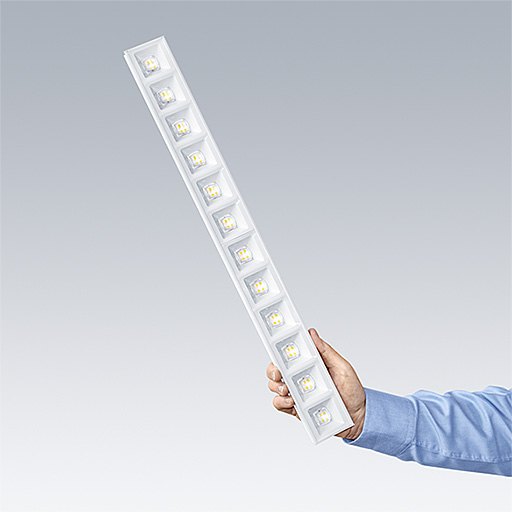

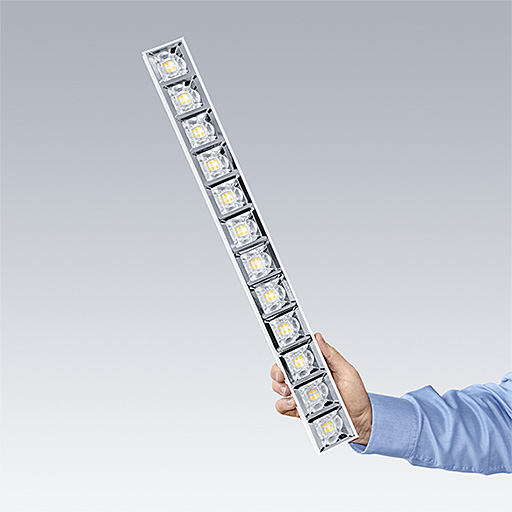

- Each complete linear LED module can be easily replaced tool-free and offers a simple click-in mechanism, this allows a change of LED modules at end of life or the change of colour temperature or colour rendering if desired.

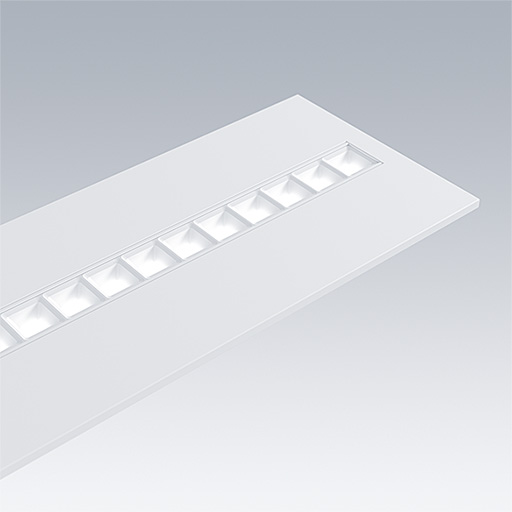

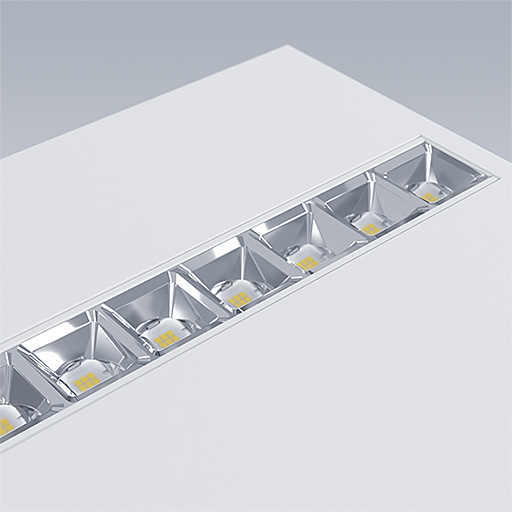

- A combination of deep cells with primary lenses provide high quality lighting with even light distribution and efficient glare control at very high brightness of the LED modules.

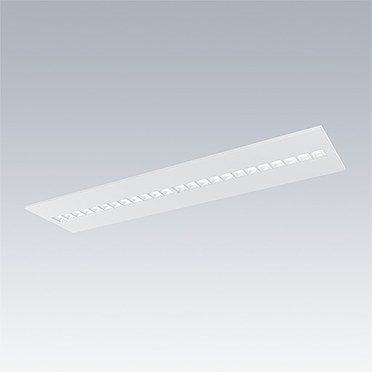

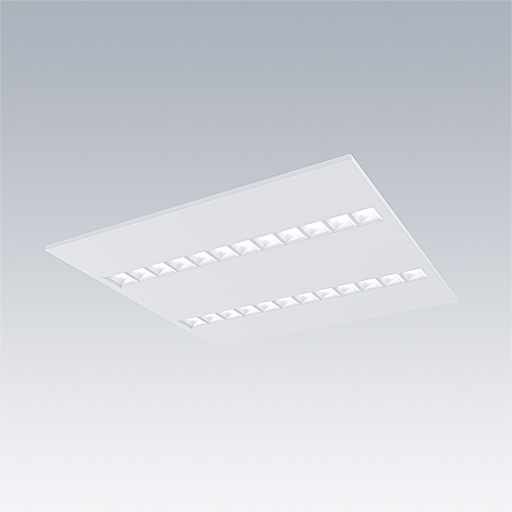

- Available in sizes 600 x 600 mm, 625 x 625 mm, 1200 x 300 mm in different lumen packages (3300, 4100, 4800 lumen), colour temperatures of 3000 K, 4000 K and VCT 2700 K…6500 K and options of CRI 80 and CRI 90.
- The design allows the clean integration of sensors, controls and emergency options into the front of the panel with all components neatly stored within a gear tray on the back of the panel.
Materials and Finish
Frame: mild sheet steel, white (RAL9016).
LED module: Moulded plastic, white.
Optical system: Plastic lens.
Installation and Mounting
Suitable for recessed lay in grid ceilings as standard and when combined with additional accessories will allow installation in concealed ceilings, surface-mounted and suspended. All accessories need to be ordered separately.
Each complete linear LED module can be easily replaced tool-free and offers a simple click-in mechanism.
Specification
A sustainable LED panel utilising replaceable linear LED modular light source and driver. Each complete LED module can be easily replaced tool-free and offers a simple click-in mechanism. Each LED module has a combination of deep cells with primary lenses to provide high quality lighting with even light distribution and efficient glare control, UGR <19, at very high brightness of the LED modules. Suitable for lay-in and concealed ceilings as well as for surface mounting or wire suspension. Available in sizes 600 x 600 mm, 625 x 625 mm, 1200 x 300 mm in different lumen packages 3300, 4100, 4800 lumen, colour temperatures of 3000 K, 4000 K and VCT 2700 K…6500 K and options of CRI 80 and CRI 90.
As Thorn OMEGA MODULINE
- New Product
▼ Omega Moduline
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
OMEGA M 3300-840 HF WHG 3X12 | LED | 1.63 | 96636389 | ||||||
OMEGA M 3300-840 HF WHG 3X12D | LED | 1.85 | 96637029 | ||||||
OMEGA M 3300-840 HF WHG 3X12F | LED | 1.92 | 96637030 | ||||||
OMEGA M 3300-840 HF WHG Q600 | LED | 2.52 | 96636385 | ||||||
OMEGA M 3300-840 HF WHG Q625 | LED | 2.65 | 96636387 | ||||||
OMEGA M 3300-840 HF WHG Q675 | LED | 3.06 | 96637028 | ||||||
OMEGA M 4100 840 HF SRG Q600 | LED | 4.50 | 93907301 | ||||||
OMEGA M 4100-840 HF WHG 3X12 | LED | 1.63 | 96636367 | ||||||
OMEGA M 4100-840 HF WHG 3X12D | LED | 1.85 | 96637026 | ||||||
OMEGA M 4100-840 HF WHG 3X12F | LED | 1.92 | 96637027 | ||||||
OMEGA M 4100-840 HF WHG Q600 | LED | 2.52 | 96636364 | ||||||
OMEGA M 4100-840 HF WHG Q625 | LED | 2.65 | 96636366 | ||||||
OMEGA M 4100-840 HF WHG Q675 | LED | 3.07 | 96637025 | ||||||
OMEGA M 4800-840 HF WHG 3X12 | LED | 1.63 | 96636395 | ||||||
OMEGA M 4800-840 HF WHG 3X12D | LED | 1.85 | 96637032 | ||||||
OMEGA M 4800-840 HF WHG 3X12F | LED | 1.92 | 96637033 | ||||||
OMEGA M 4800-840 HF WHG Q600 | LED | 2.52 | 96636391 | ||||||
OMEGA M 4800-840 HF WHG Q625 | LED | 2.65 | 96636393 | ||||||
OMEGA M 4800-840 HF WHG Q675 | LED | 3.08 | 96637031 |
▼ Omega Moduline Dimmable
Description | Type | Wt (kg) | SAP Code | ||||||
---|---|---|---|---|---|---|---|---|---|
OMEGA M 3300-840 HFIX WHG 3X12 | LED | 2.76 | 96636390 | ||||||
OMEGA M 3300-840 HFIX WHG Q600 | LED | 2.65 | 96636386 | ||||||
OMEGA M 3300-840 HFIX WHG Q625 | LED | 2.78 | 96636388 | ||||||
OMEGA M 3300-927-65 BC WHG Q600 | LED | 2.61 | 96636536 | ||||||
OMEGA M 4100-840 HFIX WHG 3X12 | LED | 2.76 | 96636384 | ||||||
OMEGA M 4100-840 HFIX WHG Q600 | LED | 2.65 | 96636365 | ||||||
OMEGA M 4100-840 HFIX WHG Q625 | LED | 2.78 | 96636383 | ||||||
OMEGA M 4800-840 HFIX WHG 3X12 | LED | 2.76 | 96636396 | ||||||
OMEGA M 4800-840 HFIX WHG Q600 | LED | 2.65 | 96636392 | ||||||
OMEGA M 4800-840 HFIX WHG Q625 | LED | 2.78 | 96636394 | ||||||
OMEGA M 4800-940 HFIX WHG 3X12 | LED | 2.76 | 96636534 | ||||||
OMEGA M 4800-940 HFIX WHG Q600 | LED | 2.65 | 96636529 |
▼ Omega Moduline Accessories
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
BETA 3 IQ BEAM SURFACE MOUNT KIT Q600 | 1.90 | 96635031 | |||||||
BETA 3 IQ BEAM SURFACE MOUNT KIT Q625 | 2.00 | 96635033 | |||||||
BETA 3 SURFACE MOUNT KIT 3X12 | 2.50 | 96635034 | |||||||
OP2 CONCEALED CEILING MTG KIT PULL UP | 0.38 | 96633271 | |||||||
OP2 HIDDEN CEILING KIT CLICK IN 6x6 | 0.22 | 96633198 | |||||||
OP2 PLASTERBOARD MTG KIT 3X12 | 2.21 | 96633195 | |||||||
OP2 SAFETY WIRE KIT MRG | 0.01 | 96633199 | |||||||
OP2 SUSPENSION KIT 1500 MSW | 0.30 | 96633197 |
▼ Omega Moduline Spare Parts
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
LEM OMEGA M 830 SRG | 0.10 | 59013463 | |||||||
LEM OMEGA M 830 WHG | 0.10 | 59013457 | |||||||
LEM OMEGA M 840 SRG | 0.10 | 59013462 | |||||||
LEM OMEGA M 840 WHG | 0.10 | 59013458 | |||||||
LEM OMEGA M 930 WHG | 0.10 | 59013460 | |||||||
LEM OMEGA M 940 WHG | 0.10 | 59013459 | |||||||
LEM OMEGA M VCT WHG | 0.10 | 59013461 |
