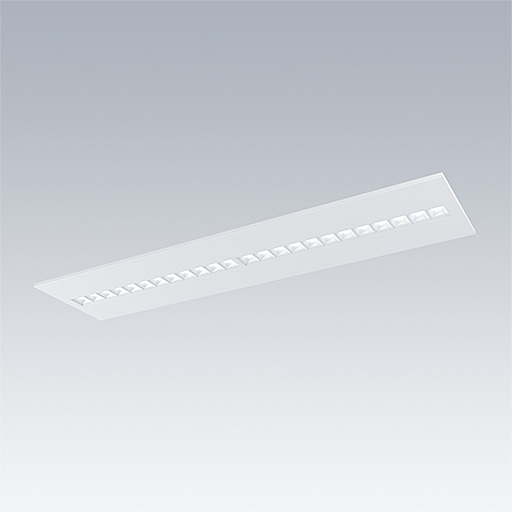

Omega Moduline / OMEGA M 4800-840 HF WHG 3X12D

A sustainable LED panel utilising replaceable modular linear LED light sources and driver for office and education applications. Each complete LED module can be easily replaced tool-free and offers a simple click-in mechanism, this allows a change of LED modules at end of life or the change of colour temperature or colour rendering if desired. A combination of deep cells with primary lenses provides high quality lighting with even light distribution and efficient glare control at very high brightness of the LED modules. Electronic, fixed output control gear. Class II electrical, IP20, Impact strength: IK03. Body: white mild sheet steel. LED module reflector finished in white. Suitable for recessed lay in grid ceilings as standard and when combined with additional accessories will allow installation in concealed ceilings, plasterboard ceilings, surface-mounted and suspended. All accessories need to be ordered separately. Rated median useful life: L90 50000 h at 25 °C. Colour Rendering Index min.: 80 Complete with 4000K LED.

Dimensions: 1247 x 309 x 33 mm
Luminaire input power: 32.7 W
Luminaire luminous flux: 5000 lm
Luminaire efficacy: 153 lm/W
Weight: 1.85 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:5000 lm
• Luminaire efficacy*:153 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 87500958 LC 34/800/42 fixC SRL ADV2
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:32.7 W Power factor = 0.95
• Dimming:FO
• Total harmonic distortion (THD):9.00 %
