Product Finder

Novaline Style

  • Novaline Style
  • Novaline Style
  • Novaline Style
  • Novaline Style
  • Novaline Style
  • Novaline Style

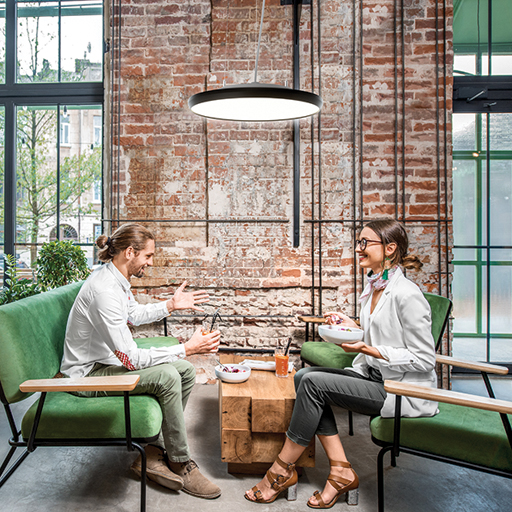

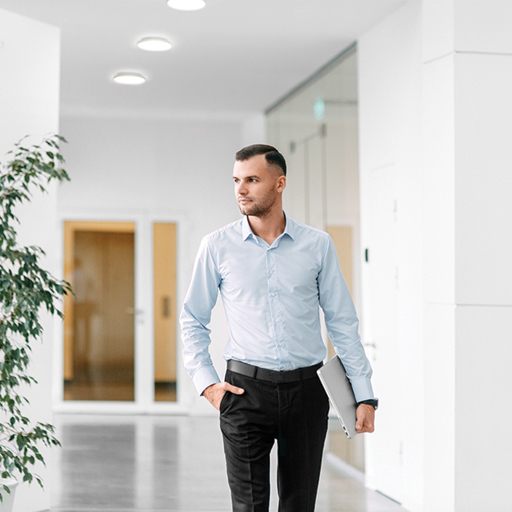

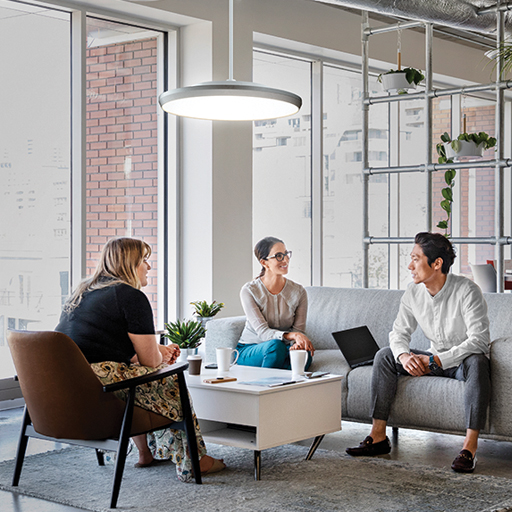

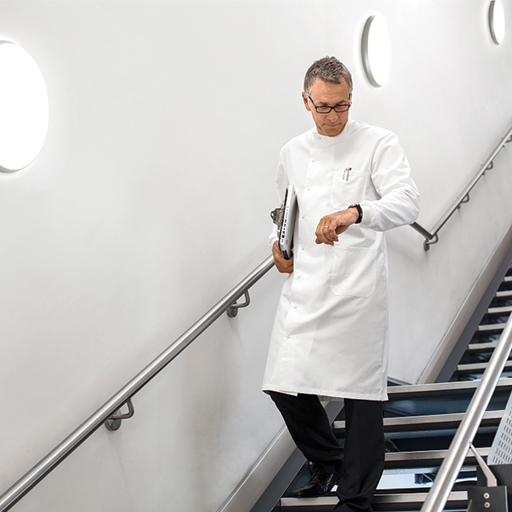

Contemporary versatility and functionality combined with elegant design, for lounge as well as for circulation areas

  • Slim design available in three sizes, with black, white and silver bezels
  • Available also with slight indirect light, ensuring comfort and uniformity
  • Easy and simple to install, with a quick fix mounting system to optimize installation timings
  • Sealed to IP54 and rated IK08 for a high degree of protection
  • ADDITIONAL OPTIONS ARE AVAILABLE: DALI Dimmable, Emergency (E3, E3D), Bluetooth control, and different sensors. See myProduct for configuration options.

Materials and Finish

Body: polycarbonate in white, black or silver
Diffuser: opal polycarbonate

Installation and Mounting

Suitable for installation directly on walls or ceilings. Easy and simple to install, with a quick fix mounting system to optimize installation timing.

Specification

To specify state:
Elegant, slim, functional, and well-protected luminaire for installation on walls and ceilings. The elegant shape, with a height of only 69mm, is available in three dimensions (Ø320, Ø397mm & 497mm ), in white, black, or silver bezel, each with 2 different lumen packages, in warm white (3000K) and cool white (4000K), CRI 80. Diffuse lighting distribution, also available with slight indirect lighting, generating both comfort and uniformity. IP54 and IK08 rated, ensuring a high level of protection. Lifetime: 50 000 hours L80. The emergency versions, E3 (3 hours manual test) and E3D (3 hours self/addressable test) come with a Lithium ION battery with 3 levels of protection and 3 years warranty. Available also with DALI, basicDIM, Microwave Sensor (wired Master/Slave), Bluetooth and mobile apps.
As Thorn Novaline Style.

New Product
LumExpress Product
eControl Product

Novaline Style S

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
NOVS S 1400-840 DI HF BK101400LED1.6896635517
NOVS S 1400-840 DI HF WH101400LED1.6696635313
NOVS S 1900-840 DI HF BK131900LED1.6696635598
NOVS S 1900-840 DI HF WH131900LED1.6696635314

Novaline Style S, dimmable

Novaline Style S, emergency

Description   TypeWt (kg)SAP Code
NOVS S 1900-840 DI HF E3 WHLED1.9496635527
NOVS S 1900-840 DI HFI E3D WHLED1.9696635526

Novaline Style M

Description   TypeWt (kg)SAP Code
NOVS M 2500-840 DI HF WHLED2.1296635315
NOVS M 3500-840 DI HF WHLED2.1296635316

Novaline Style M, dimmable

Novaline Style M, emergency

Novaline Style L

Description   TypeWt (kg)SAP Code
NOVS L 4000-840 DI HF WHLED2.8796635317

Novaline Style L, dimmable

Novaline Style L, emergency

Description   TypeWt (kg)SAP Code
NOVS L 5000-840 DI HFI E3D WHLED3.1796635430

Novaline Style accessories
