Novaline Style / NOVS M 2500-840 DI HFI SR

96635530

Data Sheet

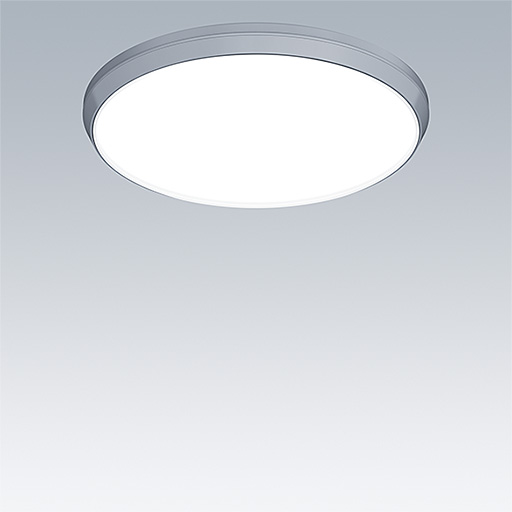

Decorative circular luminaire with medium body. Low indirect component for wall and ceiling illumination. Electronic, DALI dimmable. Aesthetic trim of the luminaire made of polycarbonate in silver. Diffuser: opal polycarbonate. Class II electrical, IP54. Complete with 4000K LED.

Dimensions: Ø397 x 69 mm
Luminaire input power: 17.6 W
Luminaire luminous flux: 2500 lm
Luminaire efficacy: 142 lm/W
Weight: 2.14 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2500 lm
  • Luminaire efficacy*:142 lm/W
  • Colour Rendering Index min.:80
  • Ballast:1 x 28000664 LCA 17W 250-700mA one4all C PRE
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Luminaire input power*:17.6 W Power factor = 0.96
  • Dimming:DaliDim dimmable to 1%
  • Maintenance category CIE 97:E - Dust-proof IP5X
  • Total harmonic distortion (THD):8.00 %
  • LED
  • CE
  • D
  • ENEC11
  • GLedReP
  • 850°
  • Halogenfree
  • IK08
  • IP54
  • LLedReP
  • RCM
  • RG1
  • RoHs
  • SC2 - Protection Class 2
  • Ta= -15 to +25
  • UKCA
