  • Areaflood Pro — AFP M 72L35-740 A4 HFX CL2 GY

Areaflood Pro / AFP M 72L35-740 A4 HFX CL2 GY

96644948

▼ Data Sheet

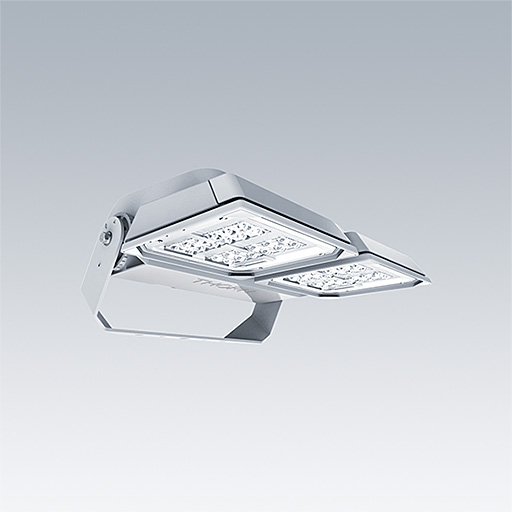

A compact, lightweight, general purpose LED area floodlight. With medium body. LED converter configured for DALI control over additional wires, driving 72 LEDs at 350mA with asymmetrical 40° light distribution. IP66, IK08, Class II electrical. Body: die-cast aluminium, Light grey 150 sanded textured (close to RAL9006).. Enclosure: mm thick toughened glass. Reversable mounting stirrup supplied, Complete with 4000K LED.



Dimensions: 458 x 490 x 139 mm
Luminaire input power: 75 W
Luminaire luminous flux: 12784 lm
Luminaire efficacy: 170 lm/W
weight: 13.75 kg
Scx: 0.064 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:12784 lm
  • Luminaire efficacy*:170 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96277222 DRV OS OT 110W 1.05A 220V D #4DIMLT2 G2
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000h at 25°C
  • Luminaire input power*:75 W
  • Dimming:SETDALI
  • LED
  • BWS - ball proof
  • CB
  • CE
  • ENEC
  • GLedReP
  • IK08
  • IP66
  • Coastal_C5
  • LLedNr
  • RCM
  • SC2 - Protection Class 2
  • Ta = -25 to 35

▼ Photometry

Photometric configuration
