Champion / CHAMPION 264L-740 ANT

96635275

Data Sheet

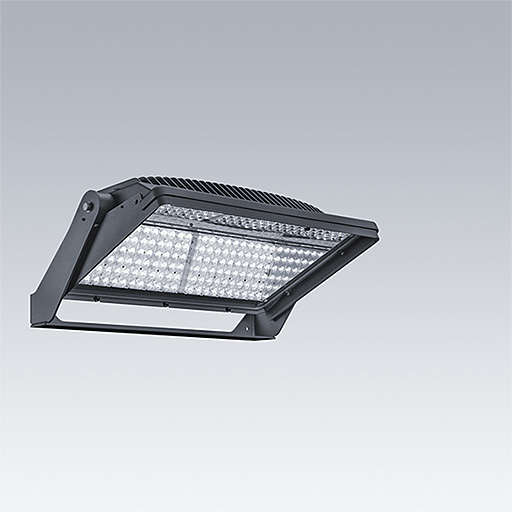

A high performance LED floodlight with 60° asymmetrical light distribution from 264 LEDs. External control gear, to be ordered separately. Class I electrical, IP66, Impact strength: IK08. Body: die-cast aluminium, powder coated textured anthracite (close to RAL7043). Enclosure: 4mm thick, toughened glass.Luminaire fixed by single bolt through Ø22mm central hole, or twin bolts through Ø15mm holes at 200mm centres. Aiming via simple aiming device (to be ordered separately). Ideal for sports fields and stadium or area lighting. Low flicker operation (<1%) suitable for HDTV broadcasting. Complete with 4000K LED with Colour Rendering Index min.: 70.

Dimensions: 688 x 707 x 315 mm
Weight: 20.41 kg
Scx: 0.158 m²

Mode selection
  • Lamp position:1200mA
  • Light Source:LED
  • Luminaire luminous flux*:117871 lm
  • Luminaire efficacy*:126 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L80 50000 h at 25 °C
  • Luminaire input power*:935 W
  • LED
  • 0.8
  • BWS - ball proof
  • CE
  • IK08
  • IP66
  • Coastal_C5
  • LLedReP
  • RCM
  • Electrical class I
  • Ta=25
  • UKCA
