Flexity columns

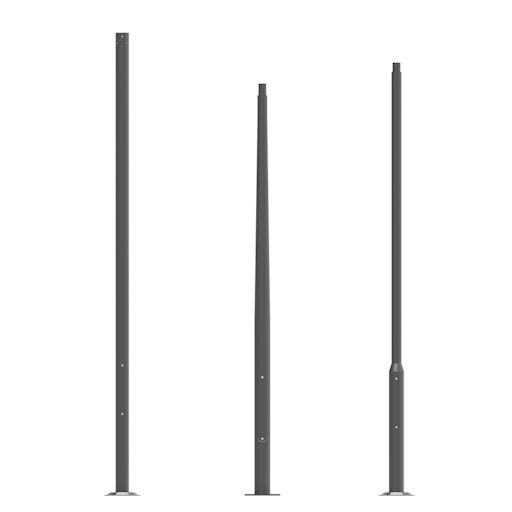

A range of 3, 4, 5m poles with three different designs: Cylindro-conical, Stepped, Cylindrical with upper shaft

To be used with pole-top luminaires or pole top accessories
The top of poles is with step, for a flush effect luminaire-pole
It is recommended that suitability for location and installed load is always checked regarding the weight / windage capabilities of the column
Other heights possible on request

Materials and Finish

Hot dip galvanised steel or aluminium. High quality powder-coating. Static strength in accordance with EN40.

Installation and Mounting

All variants are flange plated columns. Top pole: 60mm with step. It is recommended that suitability for location and installed load is always checked regarding the weight / windage capabilities of the column.

General compatibility with the following luminaire ranges: Civiteq, EP145/EP145 LED, EP445, Flexity, Flow, Gamma LED, Isaro/Isaro PRO, Plurio/Plurio LED, Thor, Urba Deco, Volupto.

It is recommended to check the final compatibility with our local customer service.
Compatibility may vary idepending of pole heights, versions and accessories.
Compatibility may vary depending on luminaire version.
Compatibility may vary depending on installation site and location.

▼ Cylindrical Columns with Upper Shaft included

Description								Wt (kg)	SAP Code
<FLEX COL SLIT 5M ST D60 BIC MPL FAI ecoCALC								44.20	96271283
