Plurio columns and brackets
A range of columns and brackets designed to harmonise both in style and proportion with Plurio lanterns

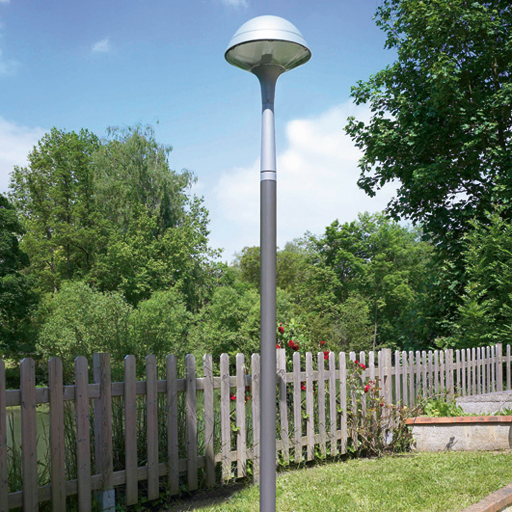

- 3.5m galvanised steel columns, in a choice of tubular (with decorative upper shaft) and stepped (with decorative waist finial) forms
- All columns are designed to the European Standard EN40
- Three choices of column mounting: flange, rooted and short rooted
- Three designs of bracket arm are available: single, twin and wall. All are crafted from cast aluminium with 60mm diameter lantern spigots
Materials and Finish
Brackets and waist finial: cast aluminium powder coated silver grey textured (close to RAL 9006)
Columns: galvanised steel powder coated dark sandy grey (close to RAL 7043)
Installation and Mounting
To mount Plurio lanterns with 60mm spigot, length 75mm.
Specification
A range of 3.5m galvanised steel columns powder coated, in a choice of tubular (with decorative upper shaft) and stepped (with decorative waist finial) forms co-ordinated with Plurio lanterns. 3 choices of column mounting: flange, rooted and rooted short.
As Thorn PLURIO columns and brackets.
New Product
LumExpress Product
eControl Product
▼ Waist finial
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PLURIO WAIST FINIAL GRY | 2.50 | 96253580 |
▼ Plurio columns for use with waist finial
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PLURIO COL 3,5M D140/76/60 MGS ST GRY | 35.00 | 96254565 |
▼ Upper shaft
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PLURIO BRA TOP 500MM D60 GRY MTP | 3.50 | 96253579 |
▼ Plurio columns for use with upper shaft
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PLURIO COL 3M 102MM ST MPL FAI | 33.00 | 96254566 |
▼ Brackets - wall mounted
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| PLURIO BRAx1 600MM D60 GRY MWA | 4.00 | 96253576 |
