  • E/Fact — EFACT R2 9L50 SOFT 832 RS FR

E/Fact / EFACT R2 9L50 SOFT 832 RS FR

96271701

▼ Data Sheet

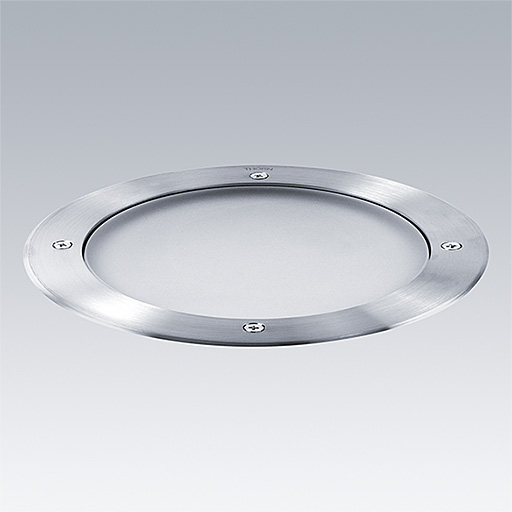

A large round ground recessed luminaire. 9 LED(s) driven at 500mA by integral driver for walkover guidance applications. Body: die-cast aluminium with powdered paint finish. Frame: stainless steel, 2mm thick. Front glass: frosted toughened sodic glass, 12mm thick, surface temperature complies with EN60598-2-13. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 1000kg. Complete with 3200K LED

Dimensions: Ø260 x 200 mm
Luminaire input power: 11.5 W
Luminaire luminous flux: 133 lm
Luminaire efficacy: 12 lm/W
Weight: 5.73 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:133 lm
  • Luminaire efficacy*:12 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Rated median useful life*: 50000h at 25°C
  • Ballast:1x EL2
  • Luminaire input power*:11.5 W
  • Dimming:FO
  • LED
  • CE
  • EAC
  • GLedReP
  • IK09
  • IP67
  • LLedNr
  • RCM
  • Electrical class I
