E/Fact / CONNECT CABLE BOX 4/6x2,5² IP67


Data Sheet

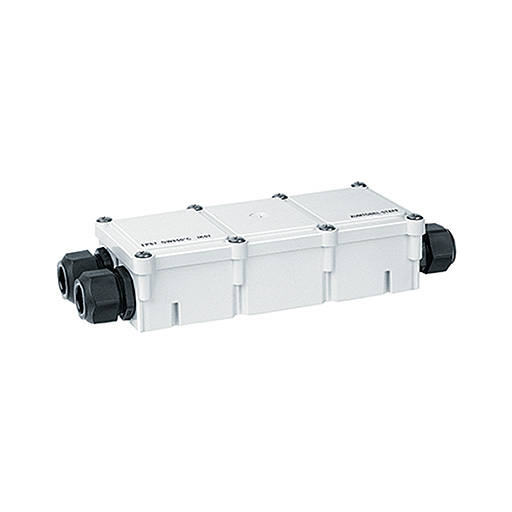

General-purpose box; IP67 degree of protection; can be used to connect up to 4 suitable cables; designed to accommodate transformers, LED power supplies or as loop-in/loop-out facility for mains cables or bus lines; grey PBT plastic housing; cable entry via 4 SW32 (M25) PG cable glands for cable Ø 6.4-16 mm; includes 2 blanking plugs for PG cable gland; 6-pole connecting terminal for max. conductor cross-section of 4 x 2.5 mm²; secured by 2 screw clips; Dimensions: 254 x 102 x 60 mm

  • CE
  • EAC
  • IP67
  • RCM
