Jalon
A small and efficient wall recessed luminaire for outdoor and indoor guidance

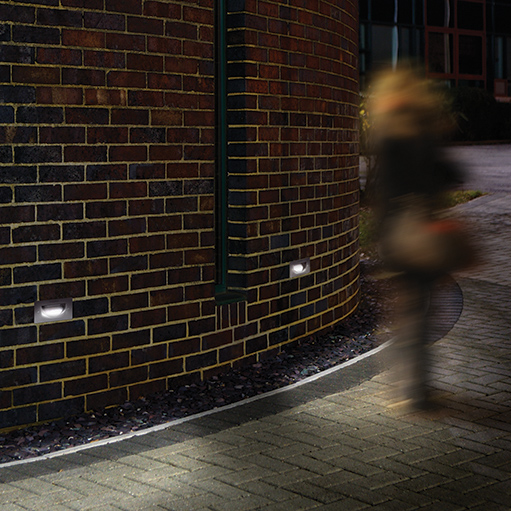

- Suitable for outdoor and indoor pathways and stairs with wide asymmetrical light beams from small dimensions (71x108mm)

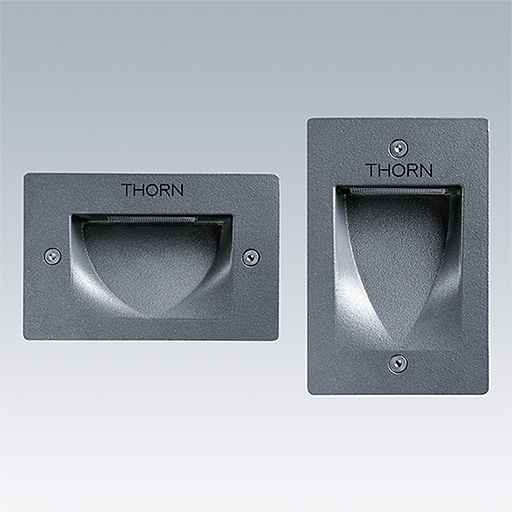

- Choice of vertical or horizontal versions and two colour temperatures
- Available complete with integral driver, LED light source and recessed box. The recessed box can also be ordered separately
- Polystyrene protection of the housing opening during installation
Materials and Finish
Body front: die-cast aluminium, painted sanded dark grey (close to RAL 9007). Silver grey (close to RAL 9006) and white (close to RAL 9003) available on request (minimum order of 10 pieces). Other RAL colours available on request (minimum order of 50 pieces).
Body rear: technopolymer
Enclosure: polycarbonate
Recessed box: polyethylene
Recessed box enclosure: polystyrene
Body and frame gasket: die-cut silicon
External screws: stainless steel AISI304
Internal screws: chromium galvanized steel
Flexible cable clamp: TPE for 9mm cable diameter
Installation and Mounting
Suitable for wall recessed mounting using recessed box. Maximum 9mm cable entry through recessed box with supplied grommet. Recessed box supplied with protective insert for installation into concrete walls. Luminaire fixed with 2 Allen screws, maximum 1Nm torque.
Specification
To specify state:
Small wall recessed range for pathway and stair lighting offering high performance. In two design models (vertical and horizontal) and two colour temperature versions (3000K/4000K).
As Thorn Jalon LED.
▼ Jalon Vertical
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| JALON LED 12L18 830 MWA V | 4 | 96 | LED | 0.30 | 96271422 | ||||
| JALON LED 12L18 840 MWA V | 4 | 96 | LED | 0.30 | 96271420 |
▼ Jalon Horizontal
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| JALON LED 12L18 830 MWA H | 4 | 96 | LED | 0.30 | 96271423 | ||||
| JALON LED 12L18 840 MWA H | 4 | 96 | LED | 0.30 | 96271421 |
▼ Jalon Accessory
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| JALON LED RBOX V/H | 0.10 | 96271424 |
