  • Mica — MICA SLIM A 5L90 ACC 8D 832 AL SF

Mica / MICA SLIM A 5L90 ACC 8D 832 AL SF

96271513

▶Change configuration

  • Base: 96271513 — MICA SLIM A 5L90 ACC 8D 832 AL SF

▼ Data Sheet

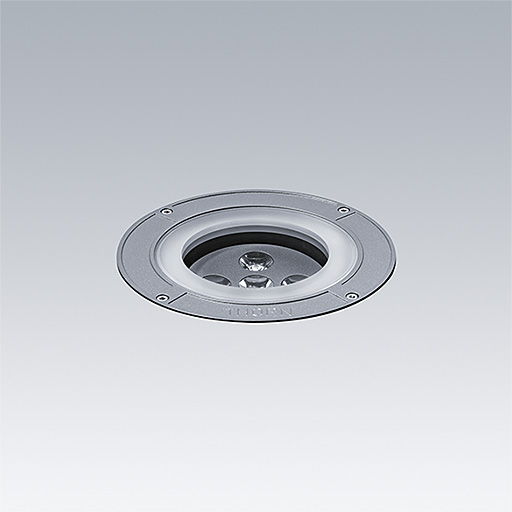

A medium, shallow, round ground recessed luminaire. 5 LED(s) driven at 900mA by integral driver. 8° beam angle for driveover illumination applications. Tilting angle adjustment of ±15°. Body: die-cast aluminium with powdered paint finish. Frame: painted aluminium, 3mm thick. Front glass: semi-frosted toughened glass, mm thick, surface temperature complies with EN60598-2-13. Pre-wired with 0.5m cable. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 3500kg. Complete with 3200K LED

Mica and Mica Slim can be installed in areas with a maximum low speed of 30km/h for the flat versions and 20km/h for the dome versions.

Dimensions: Ø220 x 195 mm
Luminaire input power: 15.9 W
Luminaire luminous flux: 884 lm
Luminaire efficacy: 56 lm/W
Weight: 4.93 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:884 lm
  • Luminaire efficacy*:56 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Rated median useful life*:L70 50000h at 25°C
  • Ballast:1x EL2
  • Luminaire input power*:15.9 W
  • Dimming:FO
  • LED
  • CE
  • EAC
  • GLedReP
  • IK10
  • IP67
  • LLedNr
  • RCM
  • Electrical class I
