Mica / MICA SLIM I 9L90 ACC 28D 840 RS SF


Change configuration

  • Base: 96271550 — MICA SLIM I 9L90 ACC 28D 840 RS SF

Data Sheet

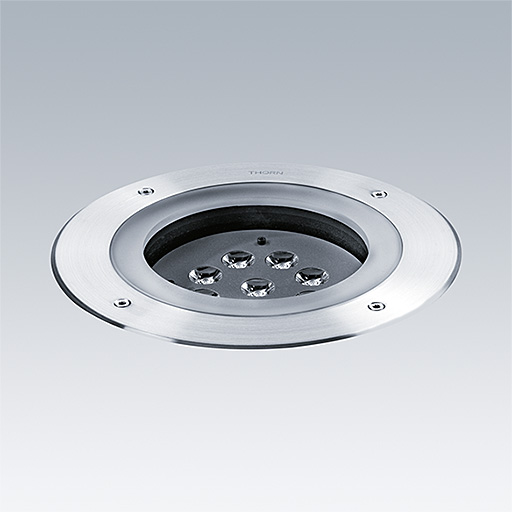

A large, shallow, round ground recessed luminaire. 9 LED(s) driven at 900mA by integral driver. 28° beam angle for driveover illumination applications. Tilting angle adjustment of ±15°. Body: die-cast aluminium with powdered paint finish. Frame: stainless steel, 3mm thick. Front glass: semi-frosted toughened glass, mm thick, surface temperature complies with EN60598-2-13. Pre-wired with 0.5m cable. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 5000kg. Complete with 4000K LED

Mica and Mica Slim can be installed in areas with a maximum low speed of 30km/h for the flat versions and 20km/h for the dome versions.

Dimensions: Ø315 x 203 mm

Weight: 9.78 kg

  • CE
  • EAC
  • GLedReP
  • IK10
  • IP67
  • LLedNr
  • RCM
  • Electrical class I
