Mica / MICA SLIM SS 1L70 ACC 832 EDO W2


Data Sheet

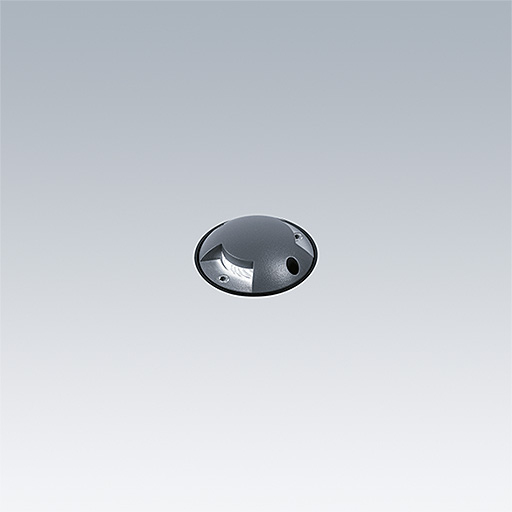

A small, shallow, round ground recessed luminaire with 2 window dome attachment. 1 LED(s) driven at 700mA by integral driver for driveover guidance applications. Body: die-cast aluminium with powdered paint finish. Frame: painted aluminium, 3mm thick. Surface temperature complies with EN60598-2-13. Pre-wired with 0.5m cable. Recessing box: polypropylene. Rated IP67, class I electrical. Maximum static load 2000kg. Complete with 3200K LED

Mica and Mica Slim can be installed in areas with a maximum low speed of 30km/h for the flat versions and 20km/h for the dome versions.

Dimensions: Ø103 x 196 mm

Weight: 1.47 kg

  • CE
  • EAC
  • GLedReP
  • IK10
  • IP67
  • LLedNr
  • RCM
  • Electrical class I
