  • Dyana — DYANA LED 36L70 NR 740 BP CL2 MA76 7M

Dyana / DYANA LED 36L70 NR 740 BP CL2 MA76 7M

96261023

▼ Data Sheet

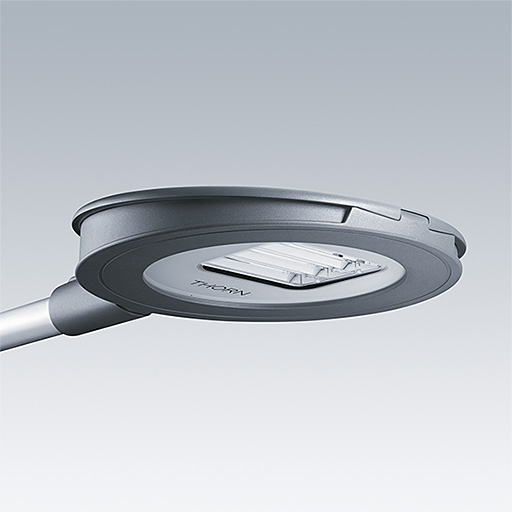

A high quality LED luminaire with narrow light distribution and Electronic, Programmable control gear. With power reduction function. Body, canopy and spigot: die-cast aluminium, textured anthracite finish. Enclosure: 5mm thick, toughened glass. Class I electrical, IP66. IK10. Pre-wired with 7m H07-RNF cable. Supplied, ready to install, in a single box. Complete with 4000K LED

Mounting: Ø76mm post-top with 5° or 10° tilt, or side entry with 0° or -5° tilt.

Dimensions: 725 x 600 x 287 mm
Luminaire input power: 76 W
Weight: 11.7 kg
Scx: 0.03 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:10386 lm
  • Luminaire efficacy*:137 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500825 LCO 90/200-1050/165 NF C ADV3
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000h at 25°C
  • Luminaire input power*:76 W Power factor = 0.9
  • Dimming:PROG
  • LED
  • CE
  • EAC
  • ENEC11
  • GLedReP
  • IK10
  • IP66
  • LLedReP
  • RCM
  • SC2 - Protection Class 2
