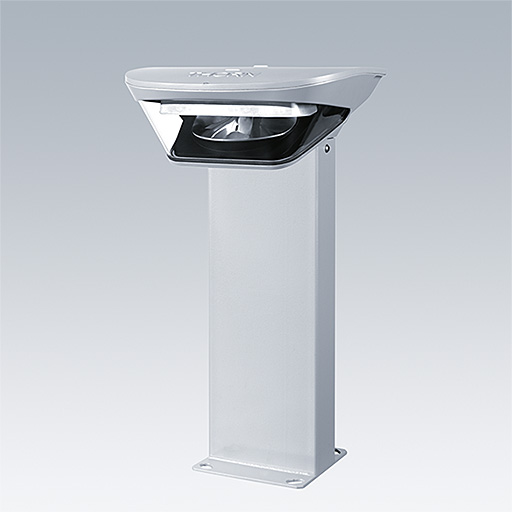

Orus / ORUS 1L70-840 BPS CL2 BOL RD-WB GY

An innovative LED Bollard mounted low level road lighting lantern incorporating Flat Beam® technology. 1 LED driven at 700mA. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Road optic, with baffle, reaching lighting standards at 0.9m mounting height. IP66, IK10, Class II electrical. Housing: die-cast aluminium, powder coated textured light grey 150 (close to RAL9006) (close to RAL9006). Enclosure: UV stabilised polycarbonate protected against graffiti and with extra scratch resistant treatment. Fixings: stainless steel, Ecolubric® treated. Complete with 4000K LED.

Due to the unique calculation requirements of this product the photometric data is not provided here but design advice may be obtained from your local representative.

Dimensions: 474 x 453 x 855 mm
Weight: 22.4 kg
Luminaire input power: 30 W
