Pedestrian Crossing

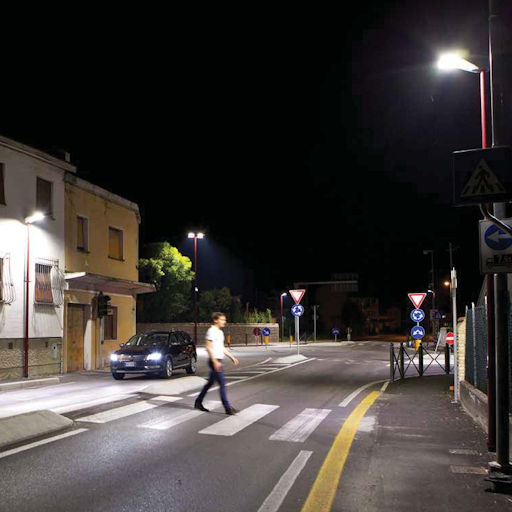

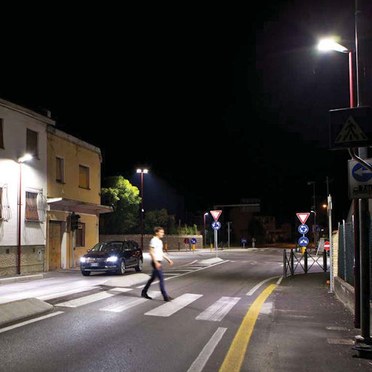

Innovative pedestrian crossing lighting concept, with optional LED blinker, designed for standard road lanterns
- Significantly improves vertical illuminance for high levels of visiblity, while extreme cut-off ensures low glare, which enhances clarity of the lit scene
- Easy installation and maintenance from proven products reduces the cost of ownership
- Broad choice of luminaire styles unifies the streetscape

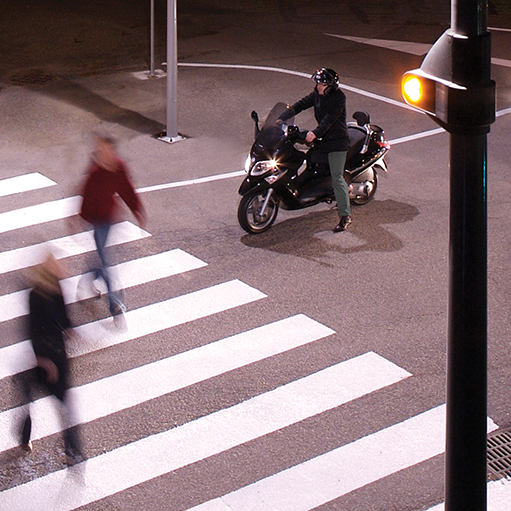

- Extra signalling via the flashing LED indicator, enhancing safety
Materials and Finish
Luminaire: see specific product page
Flashing module:
Body: ABS, finished in light grey (RAL9006) or powder coated texturised grey (close to RAL7043)
Diffuser: toughened glass
Screw fixings: stainless steel
Installation and Mounting
Luminaire: see specific product page
Flashing module: Mounts at 1120mm from the top of either a conical Ø60 mm column or cylindrical Ø76 mm column with a Ø22 mm hole (as per Thorn IVS column). Cable gland for Ø8-13mm cable. Delivered ready to install in a single carton, complete with factory fitted integral gear prewired with 5m of HO7RNF 2x1mm² cable.
Specification
To specify state:
Warning LED flashing node dedicated to pedestrian crossings. IP66 and made of vandal resistant material to be installed on the section of the column. To be installed together with Thorn pedestrian crossings luminaire and column packages.
As Thorn IVS flash node.
▼ IVS CiviTEQ
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 36L70-740 IVS CL2 M60 GY-S | 77 | 11181 | LED | 5.70 | 96643155 | ||||
| CQ 48L70-740 IVS CL2 M60 GY-S | 101 | 15134 | LED | 9.60 | 96643158 | ||||
| CQ 48L70-757 IVS CL2 M60 GY-S | 9.20 | 96643228 | |||||||
| CQ 60L70-740 IVS CL2 M60 GY-S | 125 | 18685 | LED | 9.60 | 96643161 | ||||
| CQ 60L70-757 IVS CL2 M60 GY-S | 9.24 | 96643229 | |||||||
| CQ 72L70-740 IVS CL2 M60 GY-S | 149 | 22103 | LED | 9.60 | 96643164 | ||||
| CQ 72L70-757 IVS CL2 M60 GY-S | 9.30 | 96643230 |
▼ IVS Dyana LED
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <DYANA LED 36L70 IVS 740 CL2 MLE60 | 77 | 7780 | LED | 10.90 | 96274397 |
▼ IVS R2L2
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| R2L2 M 60L70 740 IVS CL2 GY | 126 | 18146 | LED | 13.07 | 96268314 | ||||
| R2L2 M 84L70 740 IVS CL2 GY | 176 | 25107 | LED | 13.39 | 96268367 | ||||
| R2L2 M 96L70 740 IVS CL2 GY | 201 | 28766 | LED | 14.26 | 96266752 | ||||
| R2L2 S 36L70 740 IVS CL2 GY | 78 | 10888 | LED | 9.32 | 96268486 | ||||
| R2L2 S 48L70 740 IVS CL2 GY | 101 | 14418 | LED | 9.78 | 96268515 |
▼ IVS Urba
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <URBA L 48L70 757 IVS CL2 T60E W10 ANT | 103 | 11425 | LED | 16.00 | 96272235 |
