  • Pedestrian Crossing — DYANA LED 36L70 IVS 740 CL2 MLE60

Pedestrian Crossing / DYANA LED 36L70 IVS 740 CL2 MLE60

96274397

▼ Data Sheet

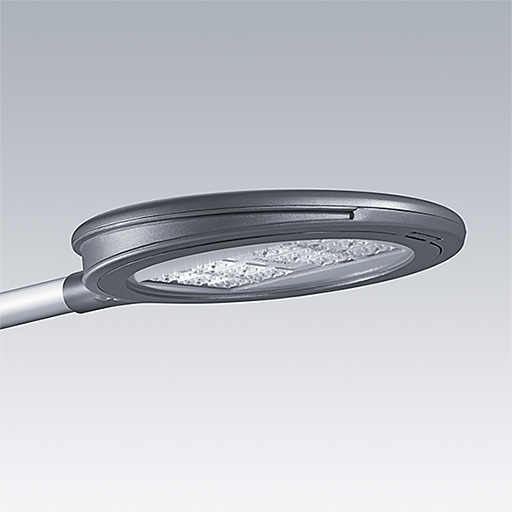

A high quality LED luminaire with Pedestrian Crossing light distribution and Electronic, Programmable control gear. Body, canopy and spigot: die-cast aluminium, textured dark grey finish. Enclosure: 5mm thick, toughened glass. Class Il electrical, IP66. Supplied, ready to install, in a single box. Complete with 4000K LED

Mounting: Ø60mm side entry with 0° tilt. Adjustable to -5° tilt or post-top with 5° or 10° tilt.

Dimensions: 685 x 511 x 161 mm
Luminaire input power: 77 W
Weight: 10.9 kg
Scx: 0.035 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:7772 lm
  • Luminaire efficacy*:101 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500825 LCO 90/200-1050/165 NF C ADV3
  • Correlated colour temperature:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000h at 25°C
  • Luminaire input power*:77 W
  • Dimming:PROG
  • LED
  • CE
  • EAC
  • GLedReP
  • IK09
  • IP66
  • LLedReP
  • RCM
  • SC2 - Protection Class 2

▼ Photometry

Photometric configuration
