Urba / URBA S 36L35 WSC ANT BP CL2 MLE L740

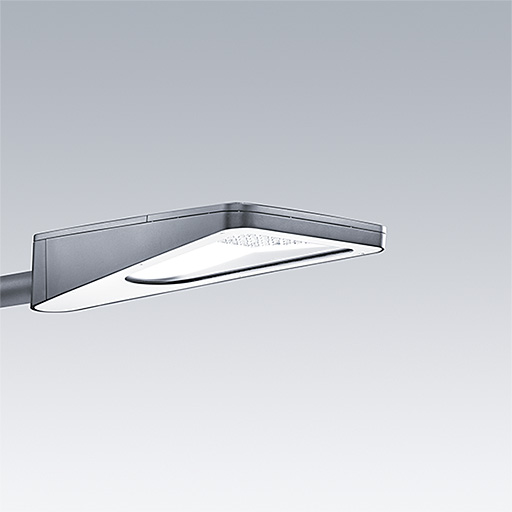

A small size LED urban street lighting lantern with 36 LEDs driven at 350mA with Wide Street & Comfort optic. Electronic, fixed output control gear. Class II electrical, IP66, IK09. Body: die-cast aluminium, textured dark grey. Cover: tempered flat clear glass. Side entry mounting to Ø60mm spigot with adjustable tilt angles of 0°, -5°, -10°. Integral power reduction function which dims down to 50% power, effective 3 hours before and 5 hours after a calculated midnight. Complete with 4000K LED.

Dimensions: 714 x 336 x 164 mm
Luminaire input power: 39 W
Weight: 10.5 kg
Scx: 0.08 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:5585 lm
• Luminaire efficacy*:143 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 96271178 DRV OS OT 60W 1.05A 115V D #1A0 4DIMLT2
• Correlated colour temperature:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L85 100000h at 25°C
• Luminaire input power*:39 W
• Dimming:FO
