Victor / VIC1 36L70-740 NR CL2 N8M R9006

96635796

Data Sheet

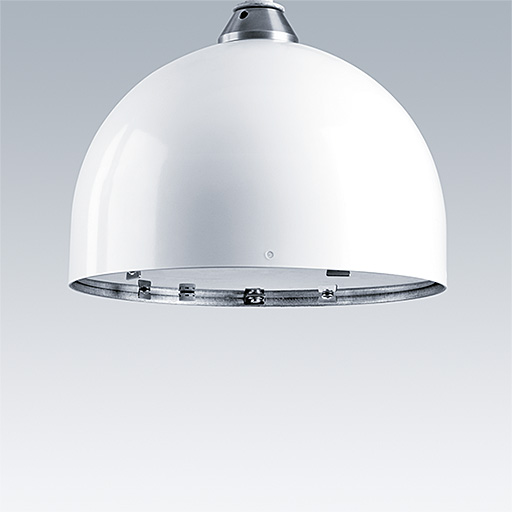

A small size LED road and street luminaire, in a modern and timeless design. 36 LEDs driven at 700mA with Narrow Road optic. Fixed output LED driver. Class II electrical, IP66. Body in aluminium, powder coated White aluminium RAL9006. Enclosure: toughened glass. Luminaire to be suspended using brackets (Ø27G), post top, or wall mounted. Tool-free electrical connection via 2 x 2.5 mm² terminal block. Pre-wired with 8m H07-RNF cable. Complete with 4000K LED

Dimensions: Ø363 x 277 mm
Luminaire input power: 76.5 W
Weight: 5.18 kg
Scx: 0.084 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:11576 lm
  • Luminaire efficacy*:151 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500825 LCO 90/200-1050/165 NF C ADV3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:76.5 W
  • Dimming:FIX
  • LED
  • CE
  • GLedReP
  • IK08
  • IP66
  • LLedReP
  • RCM
  • SC2 - Protection Class 2
