Altis Gen5

  • Altis Gen5

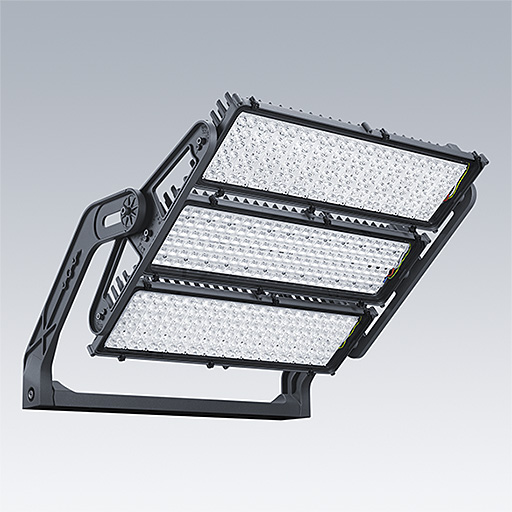

High power LED floodlight for sports (from first class professional to recreational sports fields) and area lighting applications

  • BEST IN CLASS - High performance lighting up to 256klm with exceptional environmental resistance, excellent thermal and windage properties as well as a wide choice of outputs and precision optics
  • INDIVIDUAL MODULE AIMING - Optical flexibility and modular construction enabling various combinations of optics, including the possibility to tilt each single LED module to minimize the number of luminaires and optimize the windage
  • Excellent performance with the compact gearbox installed either on the frame of the luminaire or up to 200m remotely. The patented 'fishbone' design allows maximum air flow for thermal efficiency
  • Fully controllable solution via DALI or RDM-DMX enabling instant lighting, stepped illumination levels and event lighting with dynamic lighting scenarios
  • Intuitive design for an ease of installation, with a quick fix connection box, as well as multiple fixing options. Adjustable precision setting for accurate and fast module tilting and orientation
  • To ensure suitability for your project applications, please use 'myProduct' to configure the required version. Your local Sales Team can assist with this process

Materials and Finish

Body : die-cast aluminium EN AC-44300 modules with patented 'pin fins' for maximum thermal management, powder coated paint finish
Frame and stirrup : die-cast aluminium EN AC 44100 or fabricated sheet aluminium painted (all versions) or unpainted (2 & 3 module stirrup versions)
Aluminium: low copper content, suitable for use in harsh environments including swimming pools
Glass: 4mm toughened, high transmission glass with anti-reflective treatment on both faces
Screws: zinc coated stainless steel A4 grade
Corrosion resistance: protected to classification C5 according to ISO 9223:2012

Installation and Mounting

Bracket mounted using different fixing points (one M20 screw or two M14 screws). Frame fixed to stirrup with M10 Hex screw with the possibility to move (100mm) the position horizontally (available only on 3 and 2 LED modules stirrup version). Tiltable LED modules fixed on frame via M8 Hex screws. Reversable stirrup allows 'under slung' mounting and different mounting configurations including suspension, wall mounting, surface mounting, roof mounting. The LED modules are pre-wired to a distribution box with an easy clamping connection system.
A separately supplied gearbox can be installed remotely up to 200m from the luminaire and is equipped with four different cable glands - 1 x M25 cable gland accepting cable diameter between 10 mm and 17 mm and wiring with plug-in terminals for wires up to 2,5mm² for mains supply (220-400V / 50-60Hz), 2 x M16 cable glands accepting cable diameter between 5 mm and 10 mm for control IN/OUT and 1xM32 cable gland accepting cable diameter between 13 mm and 21 mm wiring with plug-in terminals for wires up to 2,5mm² (one cable of 7-cores at length of customer choice not supplied by Thorn and used for electrical connection to the floodlight - 8-cores where NTC is used) – and LED signal to indicate the status of the gearbox. Four holes in power supply housing corners allow different mounting options.
A precision aiming device is available and adjustable on the top or bottom of each LED module.

Specification

To specify state:
High power LED floodlight for sports and area lighting. With a wide range of CCT/CRI/TLCI (3000K, 4000K and 5700K, CRI from 70 to 90+ and TLCI up to 90+) to cover all the application requirements and flicker free operation suitable for HDTV broadcasting. The floodlight allows optics to be mixed and has tiltable LED modules to optimize lighting designs and minimize number of floodlights in an installation. Each module can be individually tilted for optimum control. Compact floodlight (30,8kg for three bricks version, 23kg for two bricks version, 18,7kg for two bricks version light bracket and 9,6kg for 1 brick version), highly resistant (IP66, IK08), available with 10 excellent lighting distribution. To be completed with compact and light gearbox IP66 with RDM-DMX or DALI control interface. Gearbox housing made of die-cast aluminum with “fishbone” fins to guarantee a better thermal management in all permitted mounting positions and a full working range at ambient temperature -40°C/+45°C. Equipped in the frontal panel with LED signal to indicate the status of the gearbox. Lifetime greater than 50khrs. Surge level 10kV for Common mode and differential mode. Hot restrike and flicker-free up to 1000 frames per second (required for 100-50% output level) for HDTV camera. The gearbox can be installed on the bracket of the floodlight, inside the mast or remotely up to 200m from the floodlight. Maximum driving current must be selected according to the constraint from the targeted application, advice may be obtained from your local representative.
As Thorn Altis Gen5

  • New Product
New Product
LumExpress Product
eControl Product

Altis, 1 module

DescriptionLuminaire power (W)   TypeWt (kg)SAP Code
ALG5 144L105-740 PST A6 ANT448LED9.2896671918
ALG5 144L125-740 PST A6 ANT538LED9.2896671917
ALG5 144L140-740 PST A6 ANT292LED9.2896670255
ALG5 144L70-740 PST A6 ANT292LED9.2896671920
ALG5 144L85-740 PST A6 ANT356LED9.2896671919
ALG5 168L105-740 PST NB ANT448LED9.2896671921
ALG5 168L125-740 PST NB ANT538LED9.2896670818
ALG5 168L70-740 PST NB ANT292LED9.2896671923
ALG5 168L85-740 PST NB ANT356LED9.2896671922

Altis, 2 modules

Altis, 3 modules

DescriptionLuminaire power (W)   TypeWt (kg)SAP Code
ALG5 432L105-740 PST A6A6A6 ANT1345LED30.1096684127
ALG5 432L125-740 PST A6A6A6 ANT1614LED30.1096684126
ALG5 432L140-740 PST A6A6A6 ANT1805LED30.1196670248
ALG5 432L70-740 PST A6A6A6 ANT876LED30.1096684129
ALG5 432L85-740 PST A6A6A6 ANT1076LED30.1096684128
ALG5 456L105-740 PST NBA6A6 ANT1345LED30.4096684131
ALG5 456L125-740 PST NBA6A6 ANT1614LED30.4096684130
ALG5 456L70-740 PST NBA6A6 ANT876LED30.4096684133
ALG5 456L85-740 PST NBA6A6 ANT1076LED30.4096684132
ALG5 480L105-740 PST NBNBA6 ANT1345LED30.6096684135
ALG5 480L125-740 PST NBNBA6 ANT1614LED30.6096684134
ALG5 480L70-740 PST NBNBA6 ANT876LED30.6096684137
ALG5 480L85-740 PST NBNBA6 ANT1076LED30.6096684136
ALG5 504L105-740 PST NBNBNB ANT1345LED30.9096684138
ALG5 504L125-740 PST NBNBNB ANT1614LED30.9096670249
ALG5 504L70-740 PST NBNBNB ANT876LED30.9096684140
ALG5 504L85-740 PST NBNBNB ANT1076LED30.9096684139
ALG5 LE 432L105-740 PST A6A6A6 ANT1400LED30.1096637088
ALG5 LE 432L125-740 PST A6A6A6 ANT1650LED30.1096637087
ALG5 LE 432L85-740 PST A6A6A6 ANT1100LED30.1096637089
ALG5 LE 456L105-740 PST NBA6A6 ANT1400LED30.4096637091
ALG5 LE 456L125-740 PST NBA6A6 ANT1650LED30.4096637090
ALG5 LE 456L85-740 PST NBA6A6 ANT1100LED30.4096637092
ALG5 LE 480L105-740 PST NBNBA6 ANT1400LED30.6096637094
ALG5 LE 480L125-740 PST NBNBA6 ANT1650LED30.6096637093
ALG5 LE 480L85-740 PST NBNBA6 ANT1100LED30.6096637095
ALG5 LE 504L105-740 PST NBNBNB ANT1400LED30.9096637097
ALG5 LE 504L125-740 PST NBNBNB ANT1650LED30.9096637096
ALG5 LE 504L85-740 PST NBNBNB ANT1100LED30.9096637098
