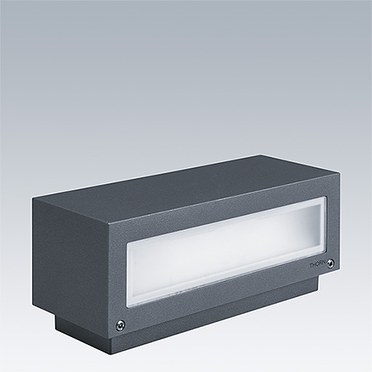

Cesar Rectangular
Compact LED floodlight providing outdoor and indoor wall light effects
- Compact, minimalist rectangular body easily integrates with indoor and outdoor façades
- Choice of 2 light effects for up/down installation in 2 colour temperatures
- All integral in a compact body
- Additional fixing plate for side wire entry when drilling through the wall is not possible
Materials and Finish
Body: die-cast aluminium EN AB 47100 painted dark sanded grey close to RAL 7043
Front glass: tempered glass, 4mm thick
Fixing plate: polycarbonate
Fixing plate accessory: galvanised steel, painted dark sanded grey
Gasket: silicon
Screws: stainless steel
Installation and Mounting
Suitable for surface mounting on interior and exterior walls. Secure the polycarbonate fixing plate to the facade with 2 screws. Connect the mains supply to the connector. Finally complete Cesar with the aluminium body part via 4 grub screws. Possibility of through wiring installation.
Specification
To specify state:
Compact rectangular floodlight range for soft light effects on walls with 2 white colour temperatures and choice of 2 versions.
As Thorn Cesar Rectangular.
▼ Cesar Rectangular
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR RECT 3L70 1WD 832 | 8 | 307 | LED | 2.10 | 96268564 | ||||
| CESAR RECT 3L70 1WD 840 | 8 | 307 | LED | 2.10 | 96264341 | ||||
| CESAR RECT 6L70 2WD 832 | 17 | 614 | LED | 2.20 | 96268563 | ||||
| CESAR RECT 6L70 2WD 840 | 17 | 614 | LED | 2.20 | 96264340 | ||||
| CESAR RECT METAL FIX PLATE | 0.40 | 96268565 |
