  • D-CO LED Floodlights — D-CO FLOOD1 60 3L35 830 NB

D-CO LED Floodlights / D-CO FLOOD1 60 3L35 830 NB

96633099

▼ Data Sheet

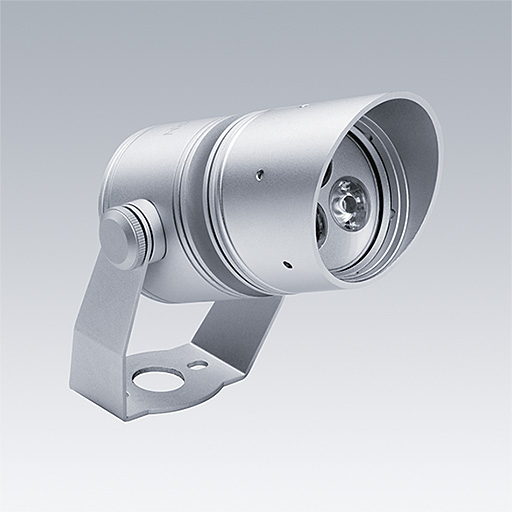

A small size, floodlight with 3 x 1.2W warm white LEDs for indoor or outdoor applications. Body in aluminium, finished in grey. Front glass toughened, stirrup or spike mounted. Complete with 5m cable. Complete with 3000K LED

Dimensions: Ø60 x 138 mm
Luminaire input power: 4.2 W
Weight: 0.4 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:277 lm
  • Luminaire efficacy*:66 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 50000h at 25°C
  • Ballast:1x LED_Con
  • Luminaire input power*:4.2 W
  • LED
  • CE
  • EAC
  • GLedReP
  • IK08
  • IP67
  • LLedNr
  • RCM
  • Electrical class I
