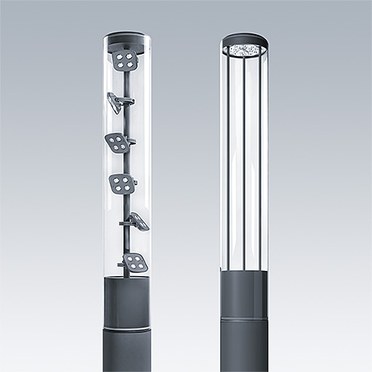

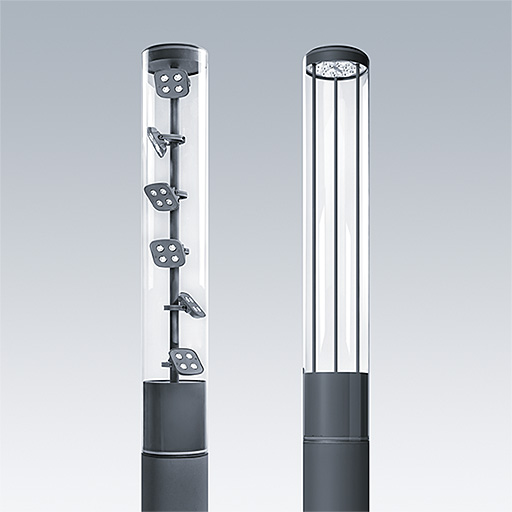

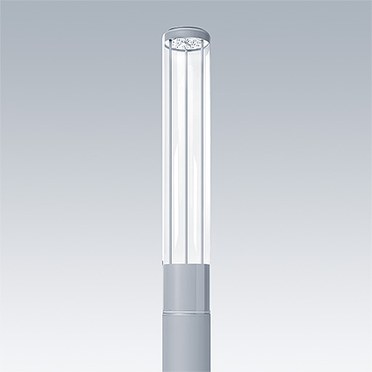

Alumet Control Direct
Combines elegance, performance, and intelligence
- Best optical offer & efficacy
- Sustainable resistance to an active city life
- Great integration with a fine design and appearance
Materials and Finish
Diffuser: clear UV stabilised PC treated with anti-graffiti varnish
Top cap: die-cast aluminium (EN AC-46000), standard corrosion class C3.
Column: extruded aluminium
Top/Column/Cover: powder coated textured silver grey (close to RAL 9006) Other RAL on request
Installation and Mounting
3 or 4m high columns, flange or root mounted (MGR or MGS) Flange: 400 x 400mm, spacings: 300 x 300mm, bolts 18 x 400 (included). Total height (with lit part of 1.25m): 4.25m or 5.25m, Diameter: 200mm. Fixing of the head by one single tool. Access to LED via 2 M6 screws in the top. Access to the driver and electronic tray by lifting up the PC diffuser and the bottom components cover. Pre-wired with 4m cable.
Specification
To specify state:
IP66 decorative lighting column with a unique design. Wide optical offer with a performance clear or a comfort prismatic variant. Post top mounting on dedicated columns. DALI, LRT, and motion detection as standard.
As Thorn Alumet Control Direct
▼ Alumet Control Direct LED, radial symmetric comfort optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
ALUMET CD 18L35-730 R/S PR HFX CL1 W4M | 21 | 1553 | LED | 10.10 | 96274719 | ||||
ALUMET CD 18L35-730 R/S PR HFX CL2 W4M | 21 | 1553 | LED | 10.00 | 96274720 | ||||
ALUMET CD 18L35-730 R/S PR LRT CL2 G4M | 21 | 1553 | LED | 10.00 | 96274723 | ||||
ALUMET CD 18L35-740 R/S PR HFX CL1 W4M | 21 | 1709 | LED | 10.10 | 96274721 | ||||
ALUMET CD 18L35-740 R/S PR HFX CL2 W4M | 21 | 1709 | LED | 10.00 | 96274722 | ||||
ALUMET CD 18L35-740 R/S PR LRT CL2 G4M | 21 | 1709 | LED | 10.00 | 96274724 |
▼ Alumet Control Direct LED, radial symmetric performance optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
ALUMET CD 18L25-730 R/S CL HFX CL1 W4M | 16 | 1582 | LED | 10.00 | 96274725 | ||||
ALUMET CD 18L25-730 R/S CL HFX CL2 W4M | 16 | 1582 | LED | 9.80 | 96274726 | ||||
ALUMET CD 18L25-740 R/S CL HFX CL1 W4M | 16 | 1741 | LED | 10.00 | 96274727 | ||||
ALUMET CD 18L25-740 R/S CL HFX CL2 W4M | 16 | 1741 | LED | 9.80 | 96274728 | ||||
ALUMET CD 18L50-730 R/S CL HFX CL1 W4M | 29 | 2894 | LED | 10.00 | 96274729 | ||||
ALUMET CD 18L50-730 R/S CL HFX CL2 W4M | 29 | 2894 | LED | 9.80 | 96274730 | ||||
ALUMET CD 18L50-740 R/S CL HFX CL1 W4M | 29 | 3184 | LED | 10.00 | 96274731 | ||||
ALUMET CD 18L50-740 R/S CL HFX CL2 W4M | 29 | 3184 | LED | 9.80 | 96274732 |
▼ Alumet Control Direct LED, narrow road asymmetric optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
ALUMET CD 24L25-730 NR-A CL HFX CL1 W4M | 20 | 2098 | LED | 9.90 | 96274733 | ||||
ALUMET CD 24L25-730 NR-A CL HFX CL2 W4M | 20 | 2098 | LED | 9.70 | 96274734 | ||||
ALUMET CD 24L25-730 NR-A CL LRT CL2 G4M | 20 | 2098 | LED | 9.80 | 96274737 | ||||
ALUMET CD 24L25-740 NR-A CL HFX CL1 W4M | 20 | 2308 | LED | 9.90 | 96274735 | ||||
ALUMET CD 24L25-740 NR-A CL HFX CL2 W4M | 20 | 2308 | LED | 9.70 | 96274736 | ||||
ALUMET CD 24L25-740 NR-A CL LRT CL2 G4M | 20 | 2308 | LED | 9.80 | 96274738 | ||||
ALUMET CD 24L35-730 NR-A CL HFX CL1 W4M | 27 | 2815 | LED | 9.90 | 96274855 | ||||
ALUMET CD 24L35-730 NR-A CL HFX CL2 W4M | 27 | 2815 | LED | 9.70 | 96274856 | ||||
ALUMET CD 24L35-730 NR-A CL LRT CL2 G4M | 27 | 2815 | LED | 9.80 | 96274859 | ||||
ALUMET CD 24L35-740 NR-A CL HFX CL1 W4M | 27 | 3097 | LED | 9.90 | 96274857 | ||||
ALUMET CD 24L35-740 NR-A CL HFX CL2 W4M | 27 | 3097 | LED | 9.70 | 96274858 | ||||
ALUMET CD 24L35-740 NR-A CL LRT CL2 G4M | 27 | 3097 | LED | 9.80 | 96274860 |
▼ Alumet Control Direct LED, wet road symmetric optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
ALUMET CD 24L25-730 RWETS CL LRT CL2 G4 | 20 | 2115 | LED | 9.80 | 96274847 | ||||
ALUMET CD 24L25-740 RWETS CL HFX CL2 W4 | 20 | 2327 | LED | 9.70 | 96274772 | ||||
ALUMET CD 24L25-740 RWETS CL LRT CL2 G4 | 20 | 2327 | LED | 9.90 | 96274848 | ||||
ALUMET CD 24L35-730 RWETS CL HFX CL1 W4 | 27 | 2838 | LED | 9.90 | 96274849 | ||||
ALUMET CD 24L35-730 RWETS CL HFX CL2 W4 | 27 | 2838 | LED | 9.70 | 96274850 | ||||
ALUMET CD 24L35-730 RWETS CL LRT CL2 G4 | 27 | 2838 | LED | 9.80 | 96274853 | ||||
ALUMET CD 24L35-740 RWETS CL HFX CL1 W4 | 27 | 3115 | LED | 9.90 | 96274851 | ||||
ALUMET CD 24L35-740 RWETS CL HFX CL2 W4 | 27 | 3115 | LED | 9.70 | 96274852 | ||||
ALUMET CD 24L35-740 RWETS CL LRT CL2 G4 | 27 | 3123 | LED | 9.80 | 96274854 |
▼ Alumet Control Direct LED, wide street comfort asymmetric optic
Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
ALUMET CD 24L25-730 WSC-A CL HFX CL1 W4 | 20 | 2069 | LED | 9.90 | 96274739 | ||||
ALUMET CD 24L25-730 WSC-A CL HFX CL2 W4 | 20 | 2069 | LED | 9.70 | 96274740 | ||||
ALUMET CD 24L25-730 WSC-A CL LRT CL2 G4 | 20 | 2069 | LED | 9.80 | 96274743 | ||||
ALUMET CD 24L25-740 WSC-A CL HFX CL1 W4 | 20 | 2277 | LED | 9.90 | 96274741 | ||||
ALUMET CD 24L25-740 WSC-A CL HFX CL2 W4 | 20 | 2277 | LED | 9.70 | 96274742 | ||||
ALUMET CD 24L25-740 WSC-A CL LRT CL2 G4 | 20 | 2277 | LED | 9.80 | 96274744 | ||||
ALUMET CD 24L35-730 WSC-A CL HFX CL1 W4 | 27 | 2776 | LED | 9.90 | 96274861 | ||||
ALUMET CD 24L35-730 WSC-A CL HFX CL2 W4 | 27 | 2776 | LED | 9.70 | 96274862 | ||||
ALUMET CD 24L35-730 WSC-A CL LRT CL2 G4 | 27 | 2776 | LED | 9.80 | 96274865 | ||||
ALUMET CD 24L35-740 WSC-A CL HFX CL1 W4 | 27 | 3055 | LED | 9.90 | 96274863 | ||||
ALUMET CD 24L35-740 WSC-A CL HFX CL2 W4 | 27 | 3055 | LED | 9.70 | 96274864 | ||||
ALUMET CD 24L35-740 WSC-A CL LRT CL2 G4 | 27 | 3055 | LED | 9.80 | 96274866 |
▼ Alumet Control Direct LED, columns
Description | Wt (kg) | SAP Code | |||||||
---|---|---|---|---|---|---|---|---|---|
ALUMET COL 3M MPL AL FAI GRY NG | 35.00 | 96259919 | |||||||
ALUMET COL 4M MGR AL GRY NG | 37.20 | 96259920 | |||||||
ALUMET COL 4M MPL AL NG R9999 | 36.00 | 96259932 |
